General data

  • Manufacturer: Bonus (Germany)
  • Model: B23/150
  • Rated power: 150 kW
  • Rotor diameter: 23 m
  • No more available
  • Offshore model: no
  • Swept area: 416 m▓
  • Power density: 2.77 m▓/kW
  • Number of blades: 3
  • Power control: Stall

Weights

  • Nacelle: 8,7 tons
  • Tower: 15 tons
  • Rotor + hub: 2 tons
  • Total: 25,7 tons

Rotor

  • Maximum rotor speed: 40 rd/min
  • Cut-in wind speed: 4 m/s
  • Rated wind speed: 13 m/s
  • Cut-off wind speed: 25 m/s
  • Manufacturer: LM Glasfiber

Gear box

  • Gear box: yes
  • Stages: 2
  • Gear ratio: 1:25
  • Manufacturer: Flender

Generator

  • Type: ASYNC
  • Number: 1
  • Maximum speed: 1000 rounds/minute
  • Voltage: 400 V
  • Manufacturer: ABB

Tower

  • Minimum hub height: 30 m
  • Maximum hub height: 40 m
PDF

B23/150 - Bonus - 150 kW
CLER


Power curve


(Air density: 1,23 kg/m3)


Wind farms in the database


Full list (74 wind farms): buy now



Pictures

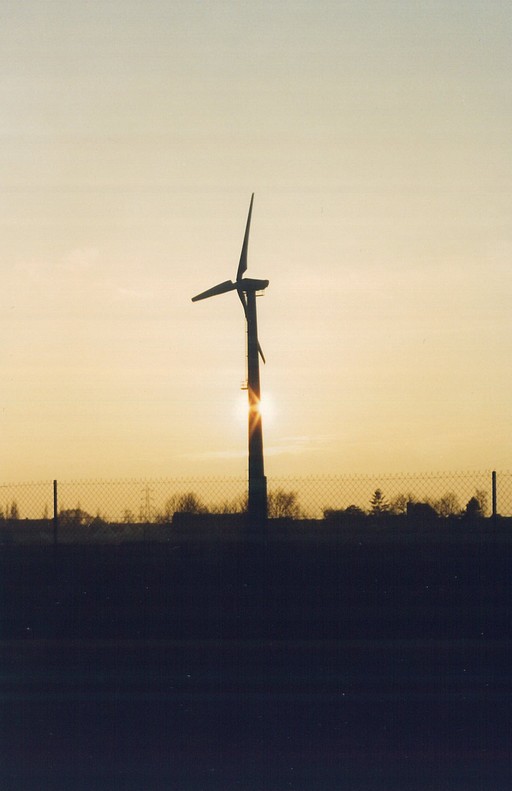

Turbine 3445
Source: CLER - License: Creative Commons BY 2.5
Picture reference: 3445

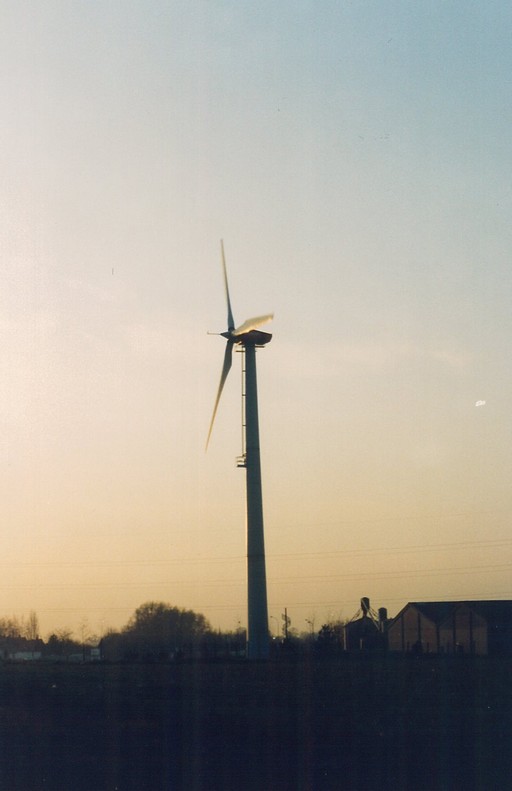

Turbine 3446
Source: CLER - License: Creative Commons BY 2.5
Picture reference: 3446

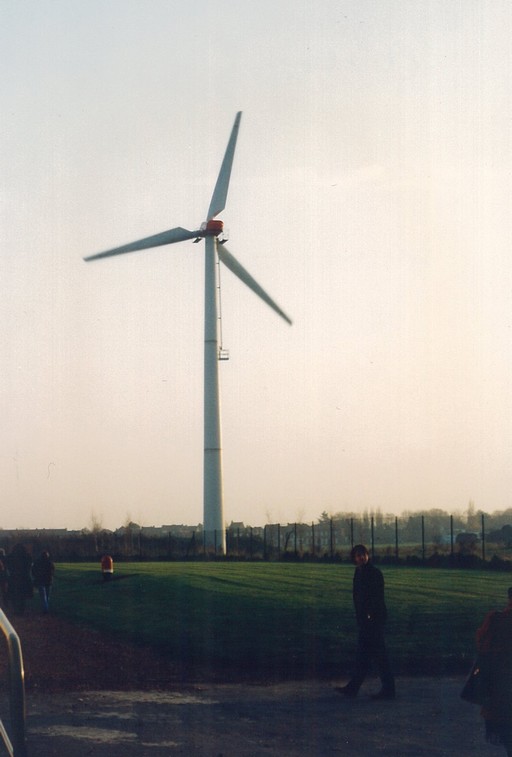

Turbine 3447
Source: CLER - License: Creative Commons BY 2.5
Picture reference: 3447

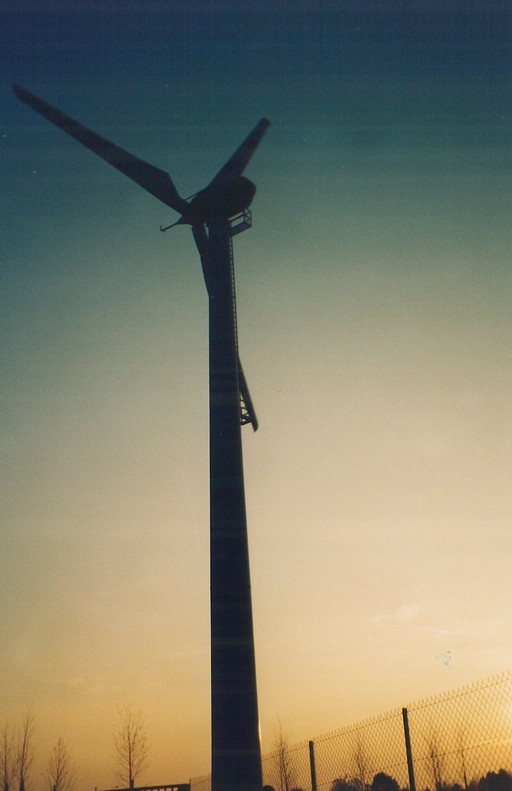

Turbine 3448
Source: CLER - License: Creative Commons BY 2.5
Picture reference: 3448

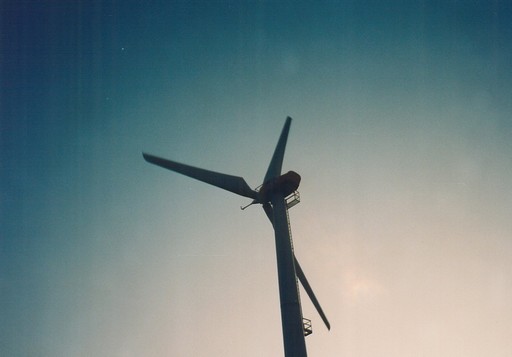

Turbine 3449
Source: CLER - License: Creative Commons BY 2.5
Picture reference: 3449

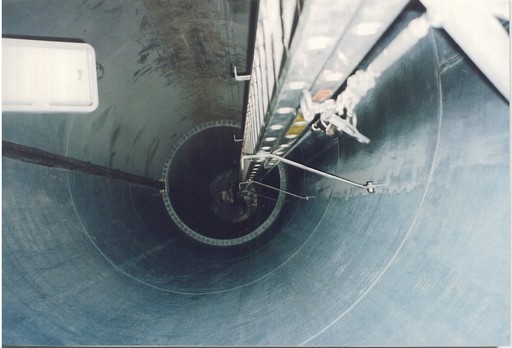

Turbine 3450
Source: CLER - License: Creative Commons BY 2.5
Picture reference: 3450

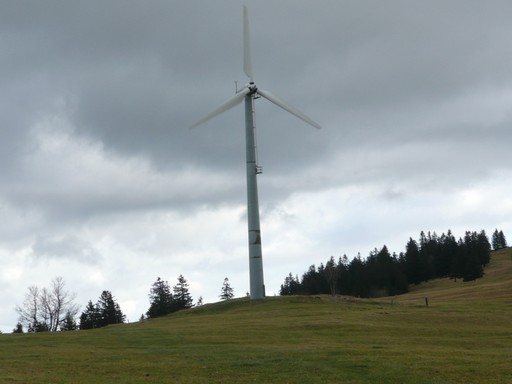

Turbine 8981
Author: Wim - License: All right reserved
Picture reference: 8981 - Date: 2009

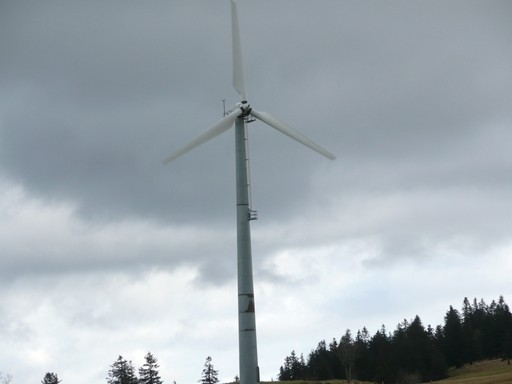

Turbine 8982
Author: Wim - License: All right reserved
Picture reference: 8982 - Date: 2009
Turbine 8983
Author: Wim - License: All right reserved
Picture reference: 8983 - Date: 2009
