General data

  • Manufacturer: Gamesa (Spain)
  • Model: G52/850
  • Nominal power: 850 kW
  • Rotor diameter: 52 m
  • No more available
  • Wind class: IEC Ia
  • Offshore model: no
  • Swept area: 2,124 m≤
  • Power density: 2.5 m≤/kW
  • Number of blades: 3
  • Power control: Pitch

Weight

  • Hub: 23 tons
  • Tube: 40 - 91 tons
  • Rotor: 10 tons
  • Total: 73 - 124 tons

Rotor

  • Minimum rotor speed: 19,44 rd/min
  • Maximum rotor speed: 30,8 rd/min
  • Start-up wind speed: 4 m/s
  • Nominal wind speed: 15 m/s
  • Maximum wind speed: 25 m/s
  • Manufacturer: Gamesa

Gear box

  • Gear box: yes
  • Speed number: 3
  • Ratio: 1:61,74
  • Manufacturer: Echesa, Fellar, Hansen, Lohman

Generator

  • Type: ASYNC
  • Number: 1
  • Maximum generator output speed: 1900 rounds/minute
  • Output voltage: 690 V
  • Manufacturer: Indar, Cantarey

Tower

  • Minimum hub height: 44 m
  • Maximum hub height: 65 m
  • Manufacturer: Gamesa

G52/850 - Gamesa - 850 kW
MichaŽl Pierrot - The Wind Power


Power curve





Pictures

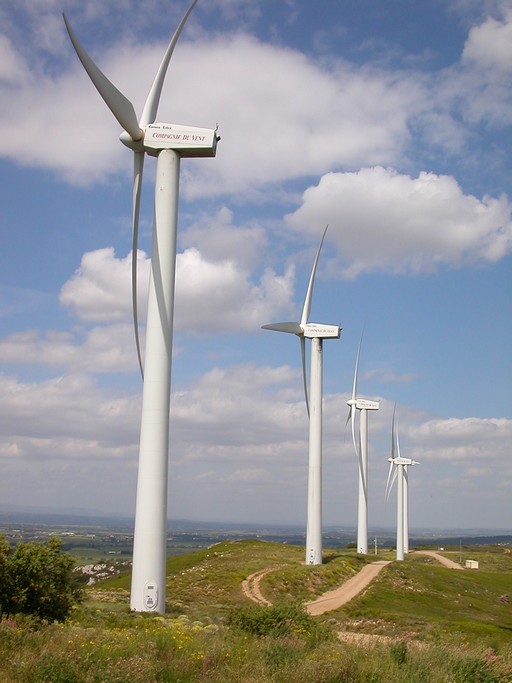

Turbine 807
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 807

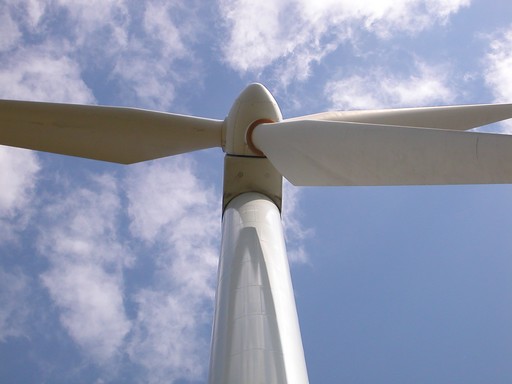

Turbine 808
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 808

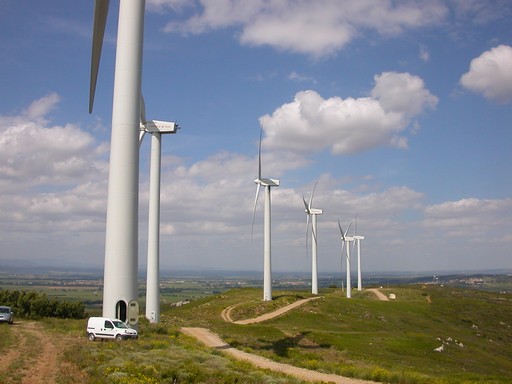

Turbine 809
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 809

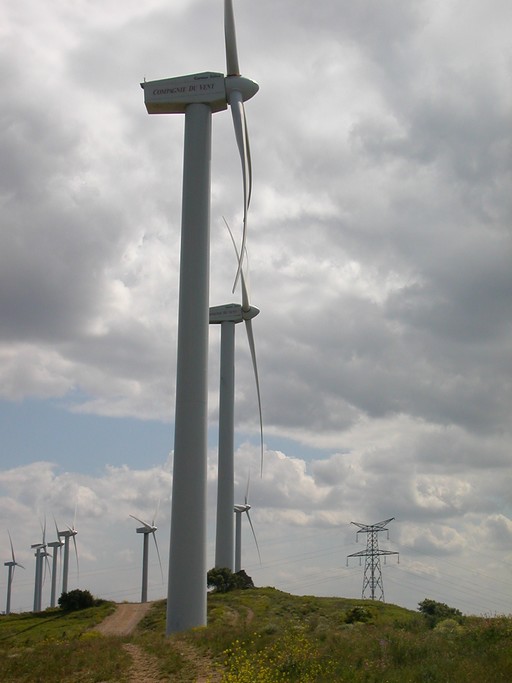

Turbine 810
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 810

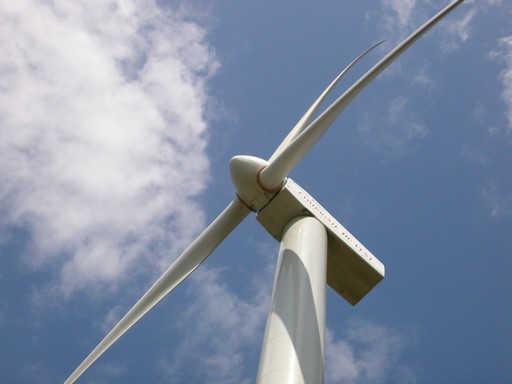

Turbine 811
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 811

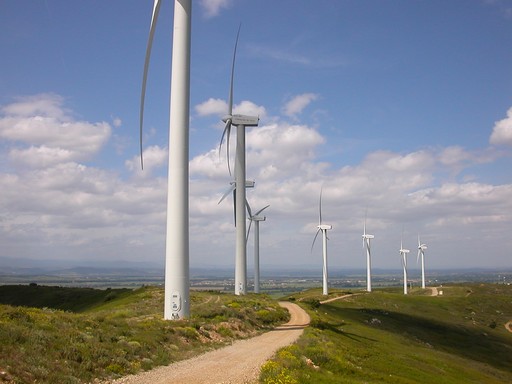

Turbine 812
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 812

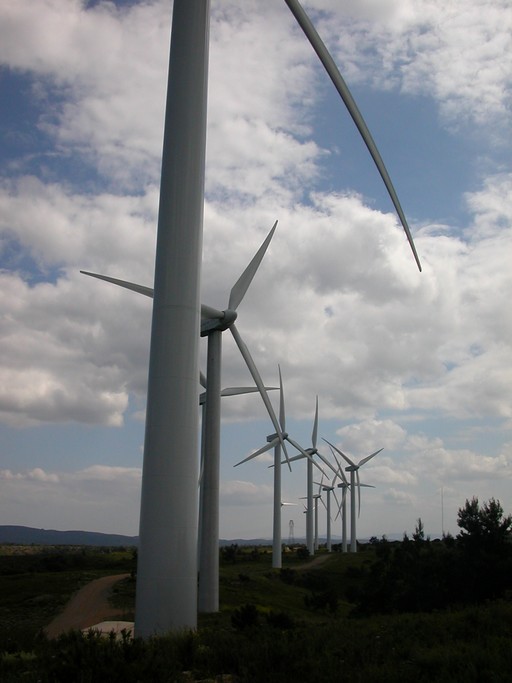

Turbine 813
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 813

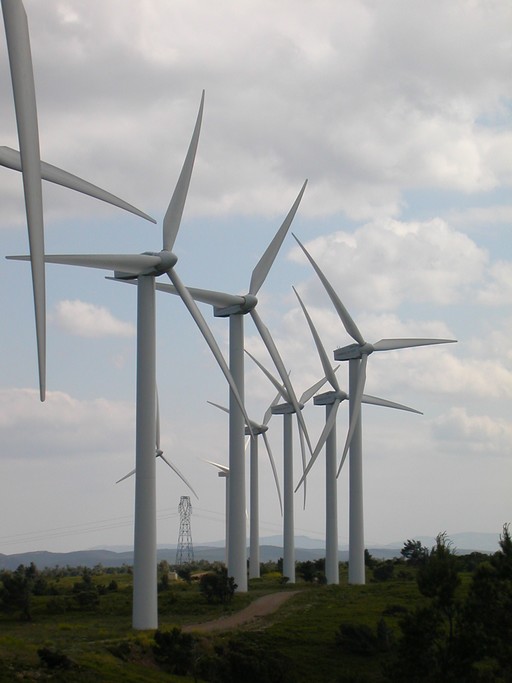

Turbine 814
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 814
Turbine 815
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 815

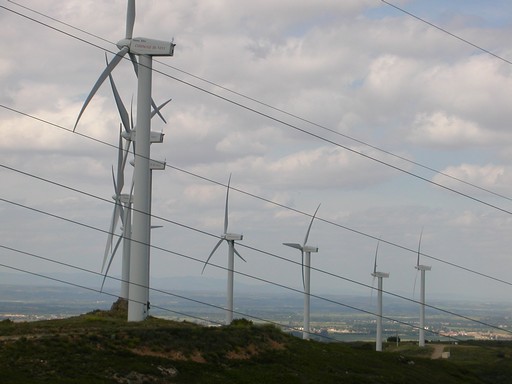

Turbine 816
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 816

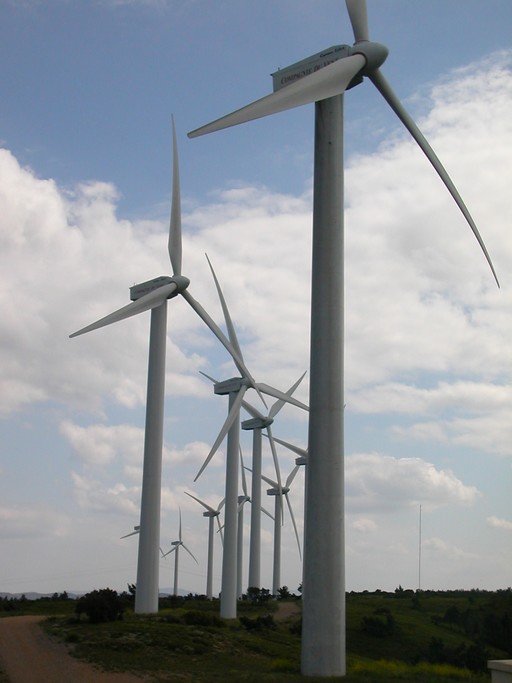

Turbine 817
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 817

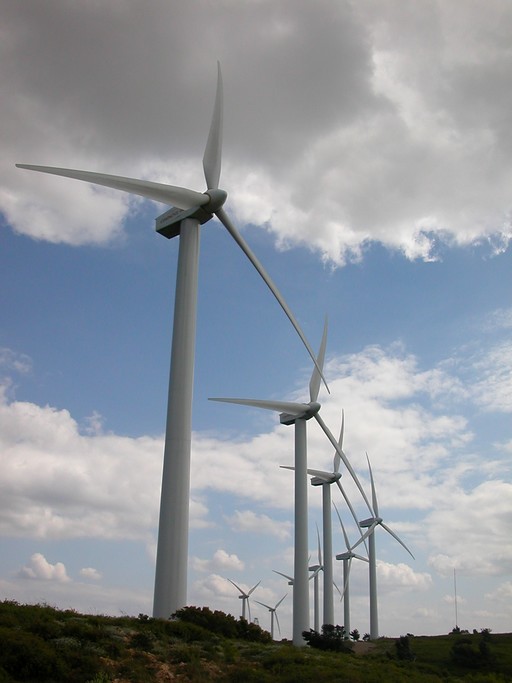

Turbine 818
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 818

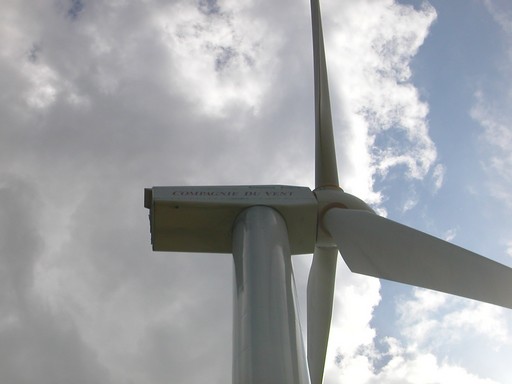

Turbine 819
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 819

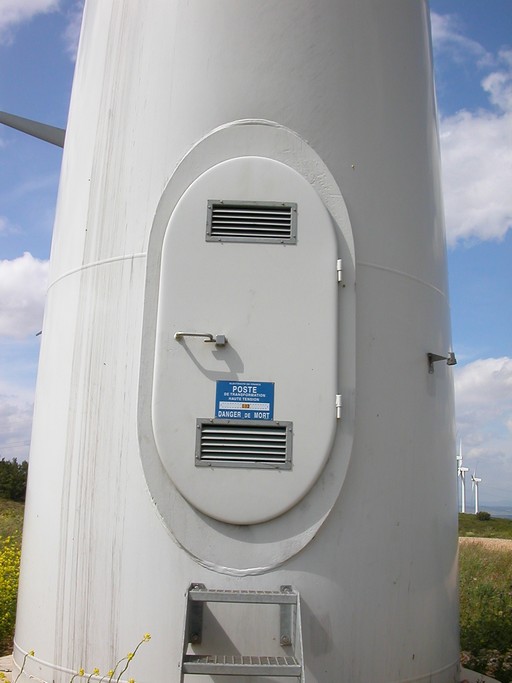

Turbine 820
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 820

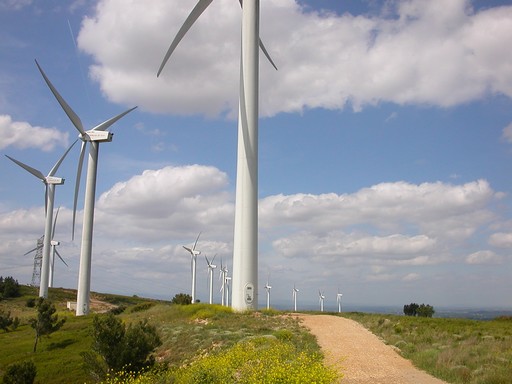

Turbine 821
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 821

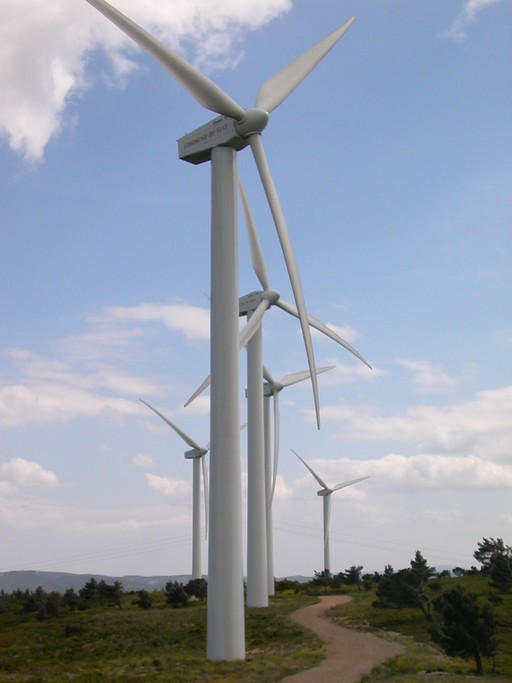

Turbine 822
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 822

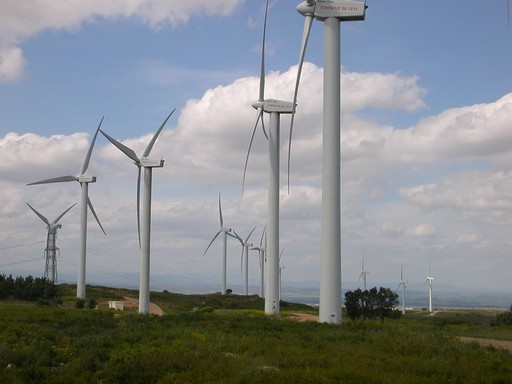

Turbine 823
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 823

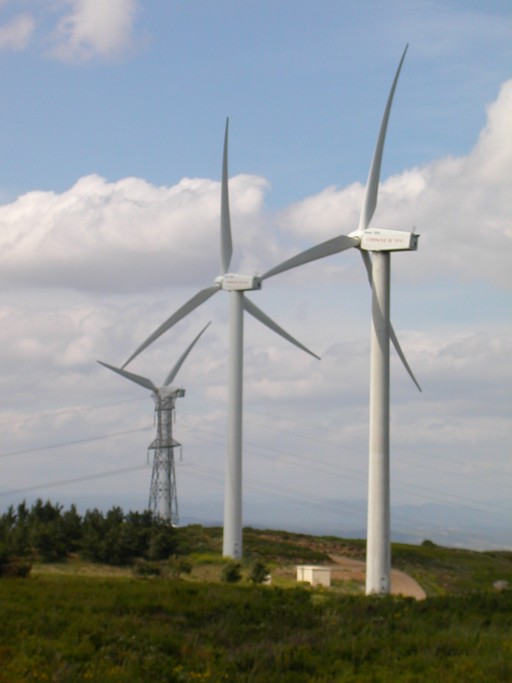

Turbine 824
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 824

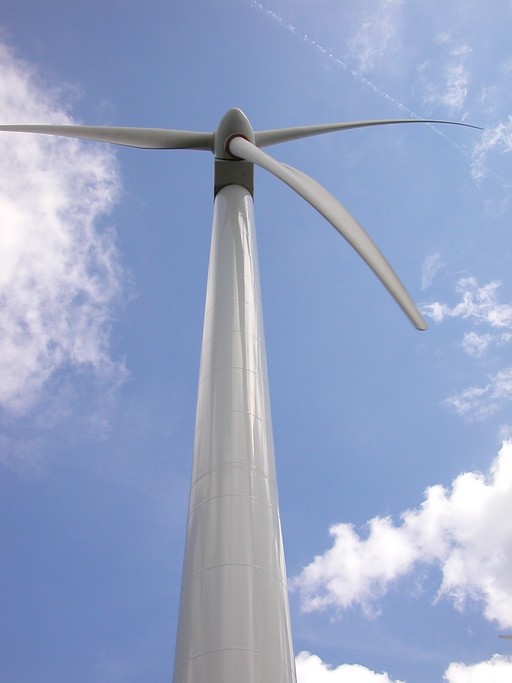

Turbine 825
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 825

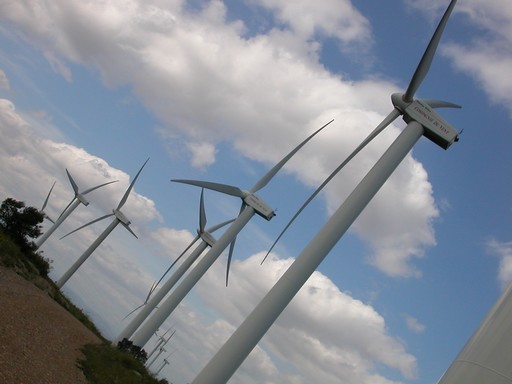

Turbine 826
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 826

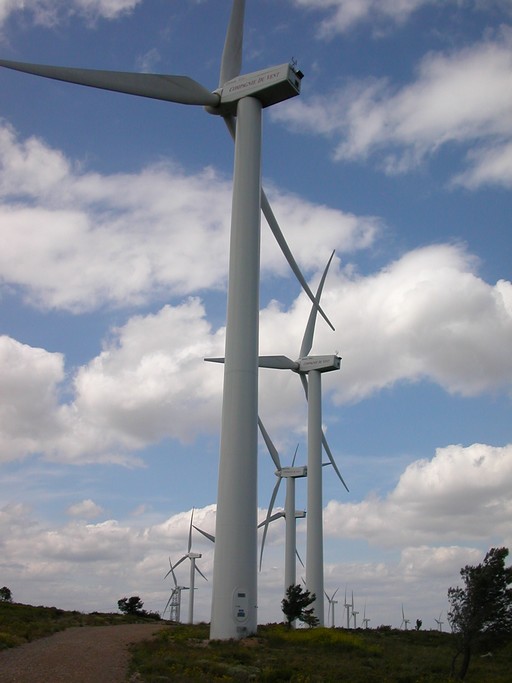

Turbine 827
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 827

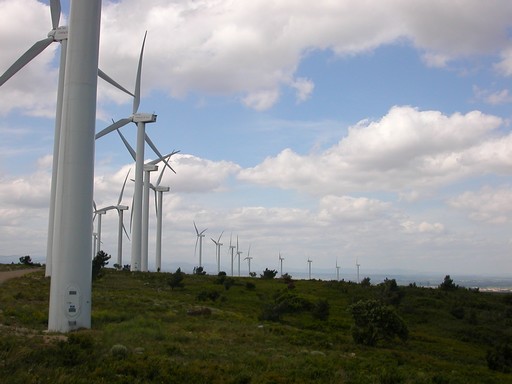

Turbine 828
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 828

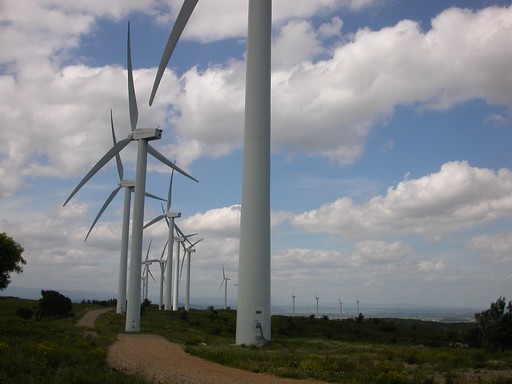

Turbine 829
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 829

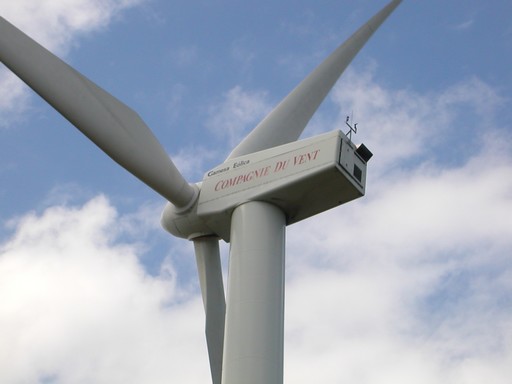

Turbine 830
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 830

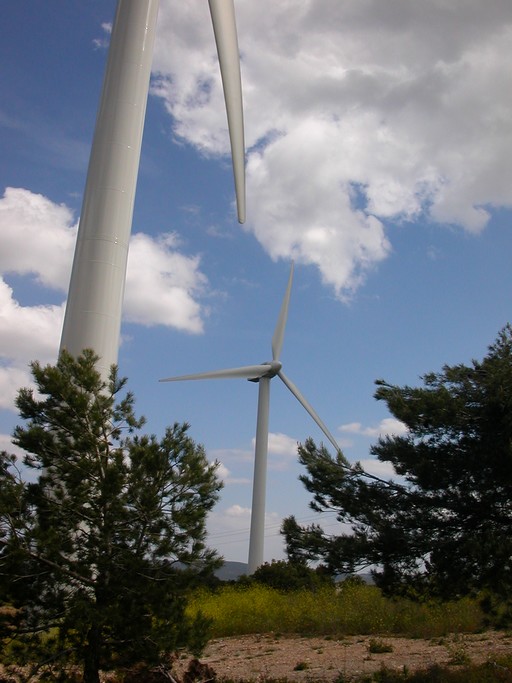

Turbine 831
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 831

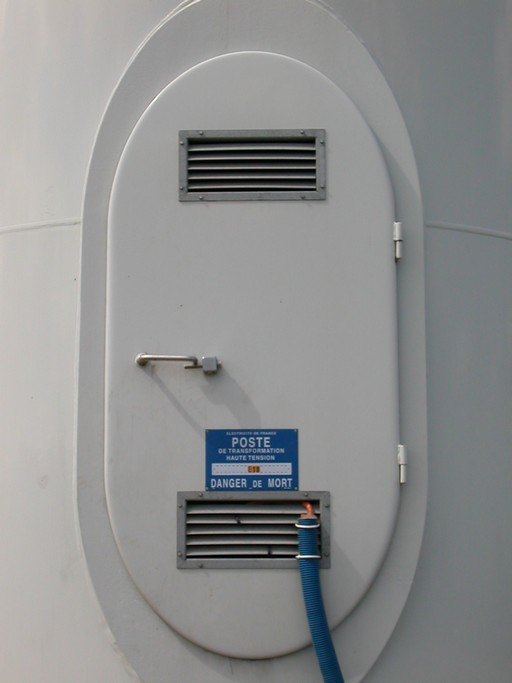

Turbine 832
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 832

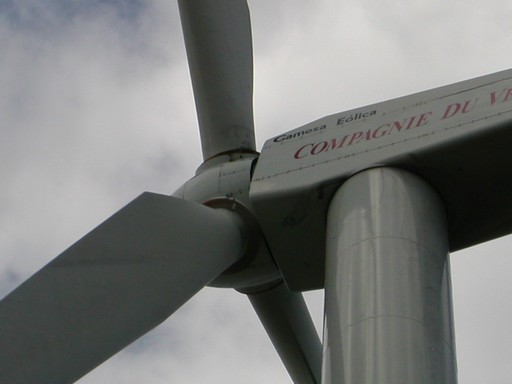

Turbine 833
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 833
Turbine 834
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 834

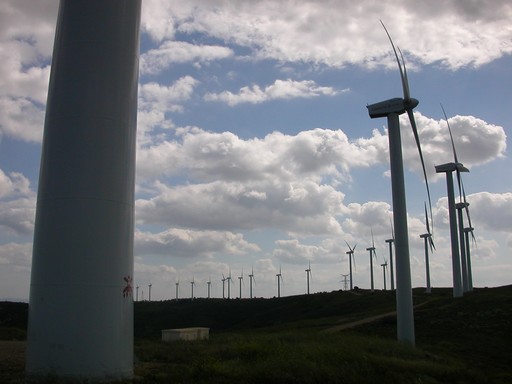

Turbine 835
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 835
Turbine 836
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 836

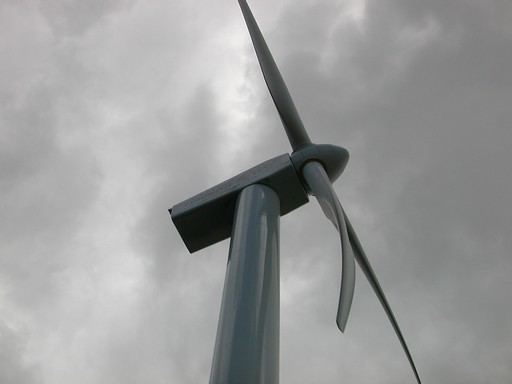

Turbine 837
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 837

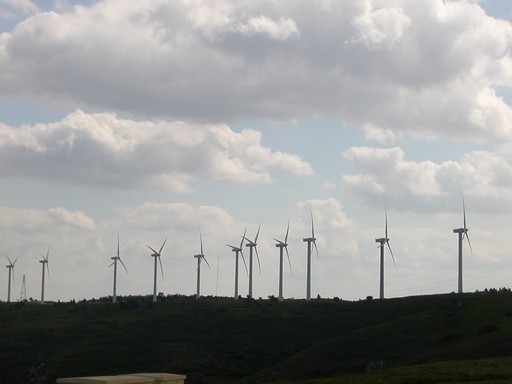

Turbine 838
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 838

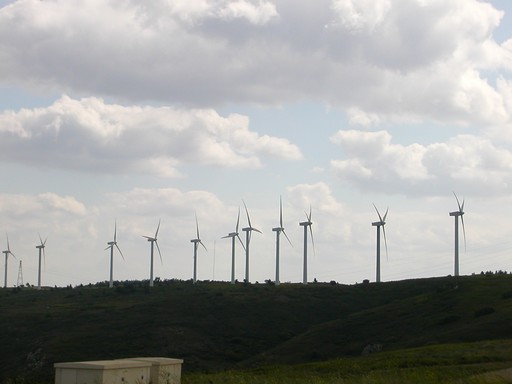

Turbine 839
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 839

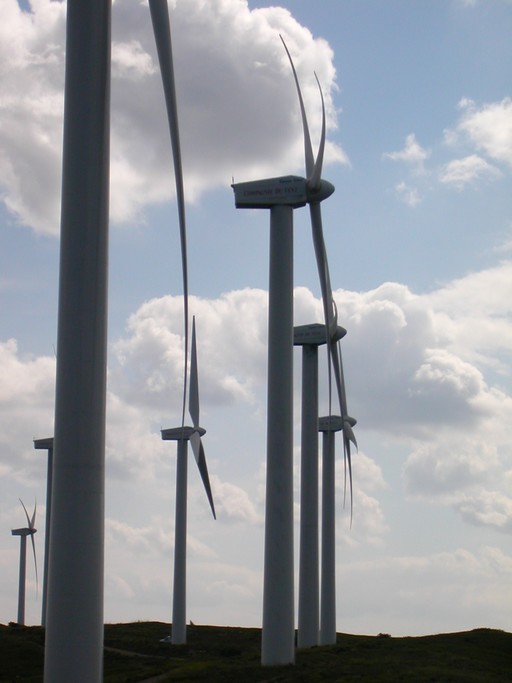

Turbine 840
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 840

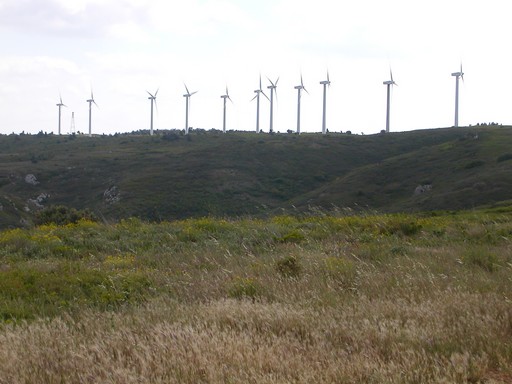

Turbine 841
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 841

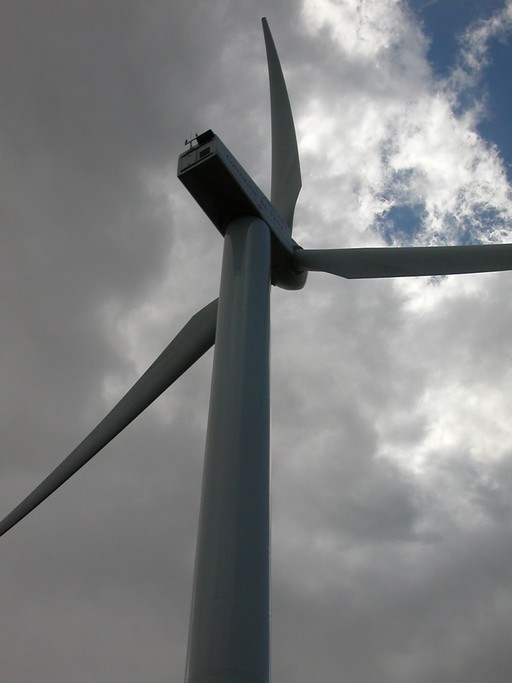

Turbine 843
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 843

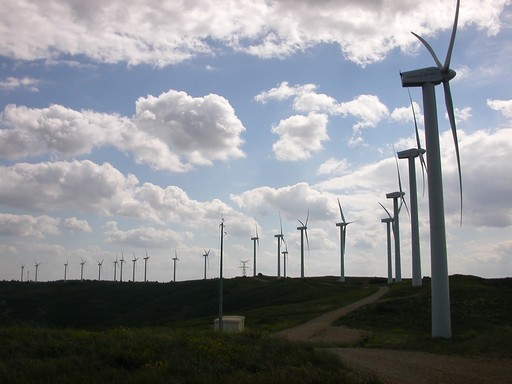

Turbine 844
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 844

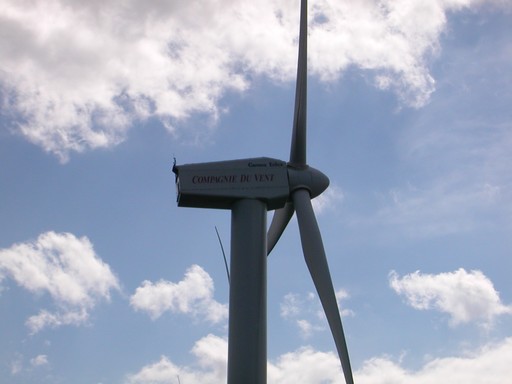

Turbine 845
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 845

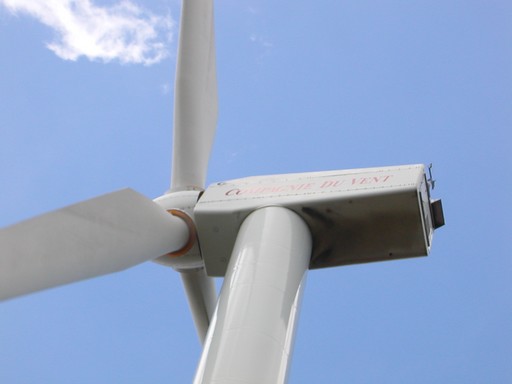

Turbine 846
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 846

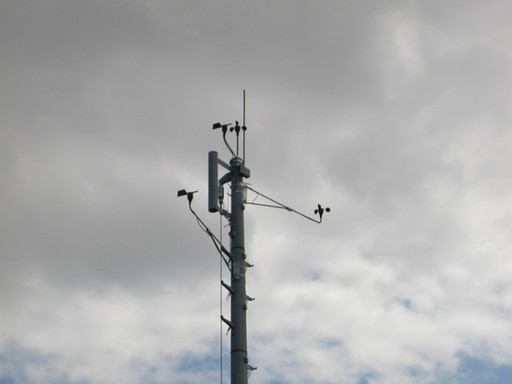

Turbine 847
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 847

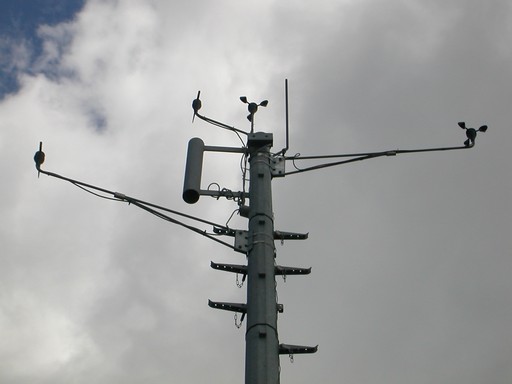

Turbine 848
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 848

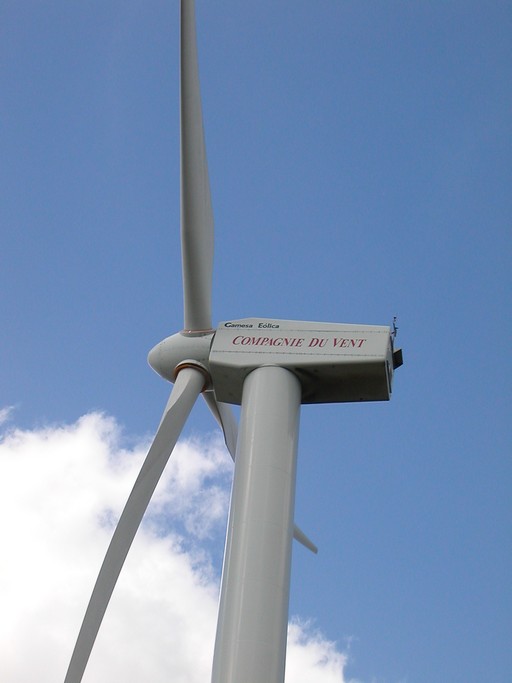

Turbine 849
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 849

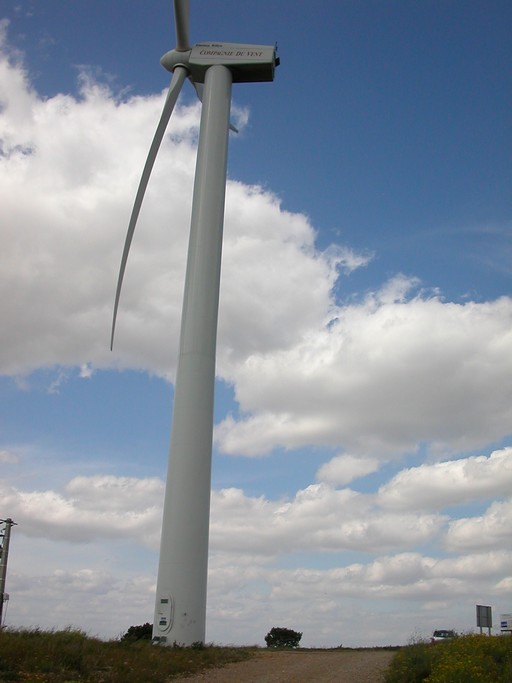

Turbine 850
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 850

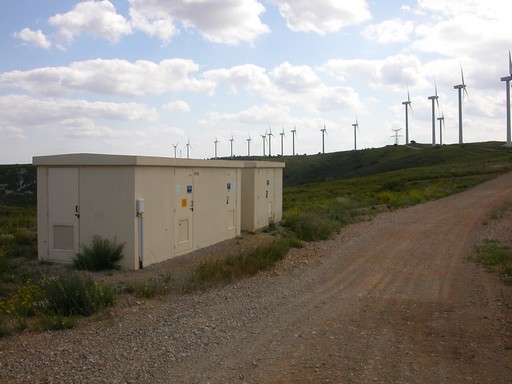

Turbine 851
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 851

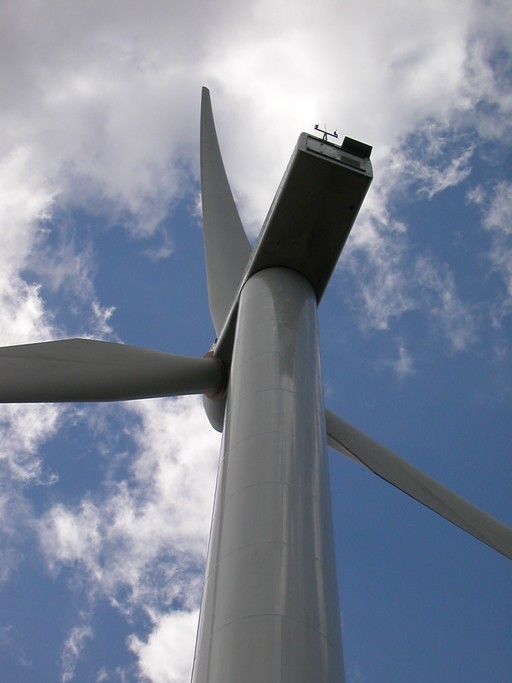

Turbine 852
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 852

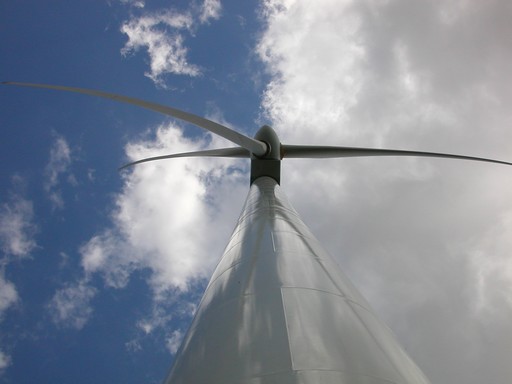

Turbine 853
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 853

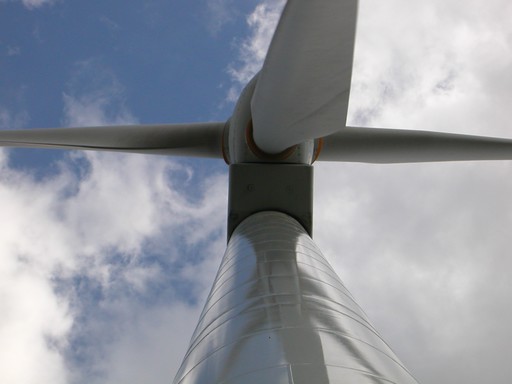

Turbine 854
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 854

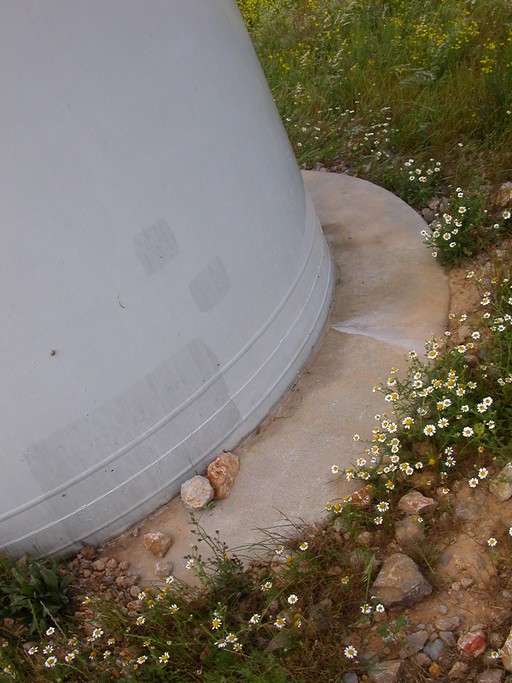

Turbine 855
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 855

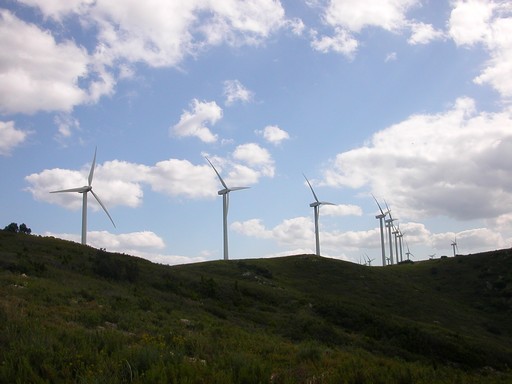

Turbine 856
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 856

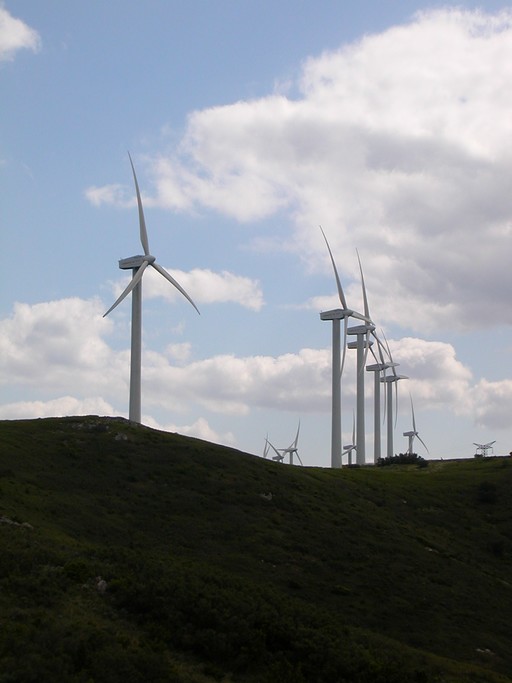

Turbine 857
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 857

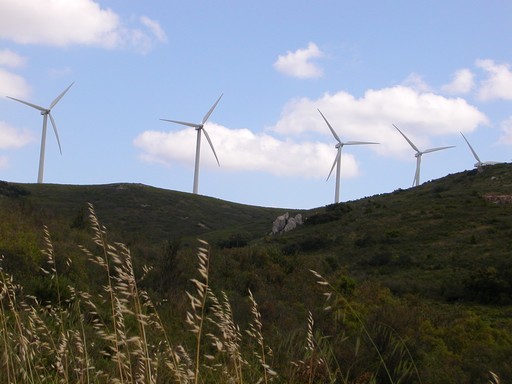

Turbine 858
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 858

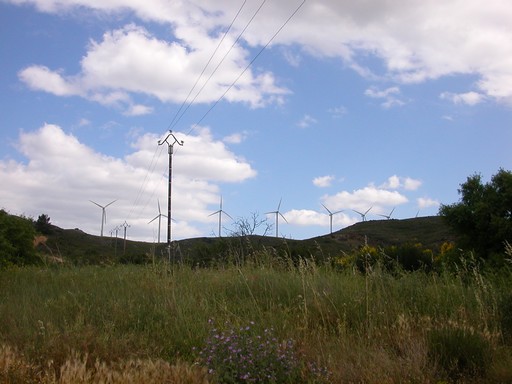

Turbine 859
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 859

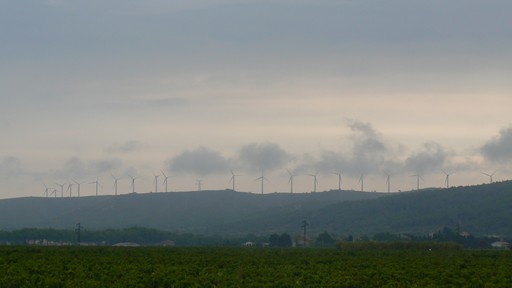

Turbine 3753
Author: MichaŽl Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 3753

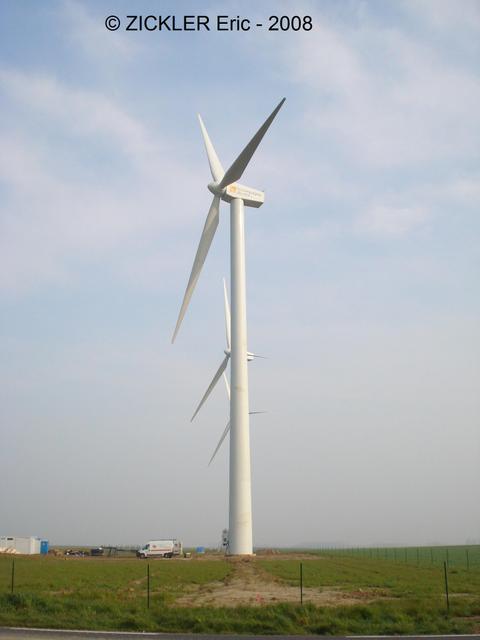

Turbine 6042
Author: Eric Zickler - License: All right reserved
Picture reference: 6042 - Date: 2008

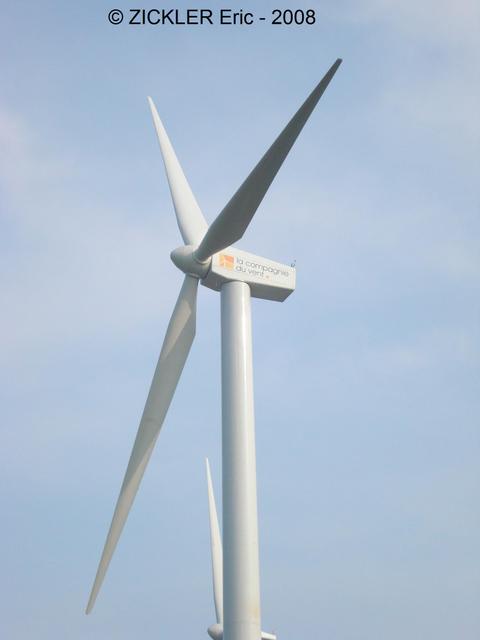

Turbine 6043
Author: Eric Zickler - License: All right reserved
Picture reference: 6043 - Date: 2008

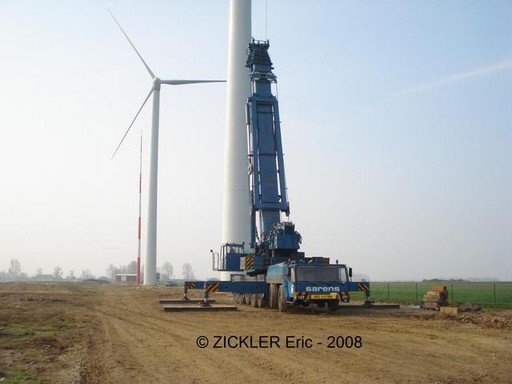

Turbine 6044
Author: Eric Zickler - License: All right reserved
Picture reference: 6044 - Date: 2008

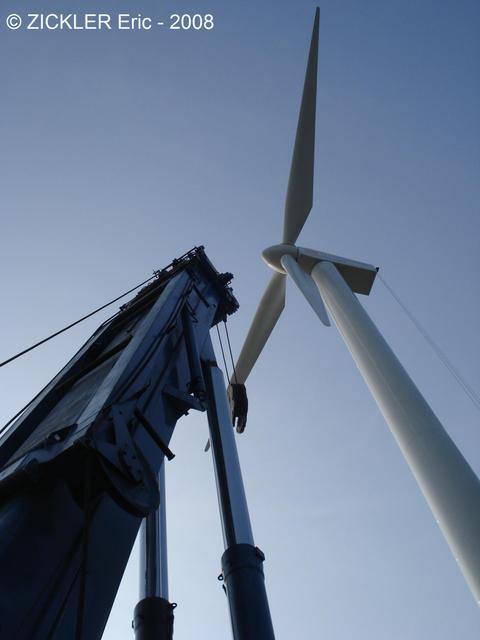

Turbine 6045
Author: Eric Zickler - License: All right reserved
Picture reference: 6045 - Date: 2008

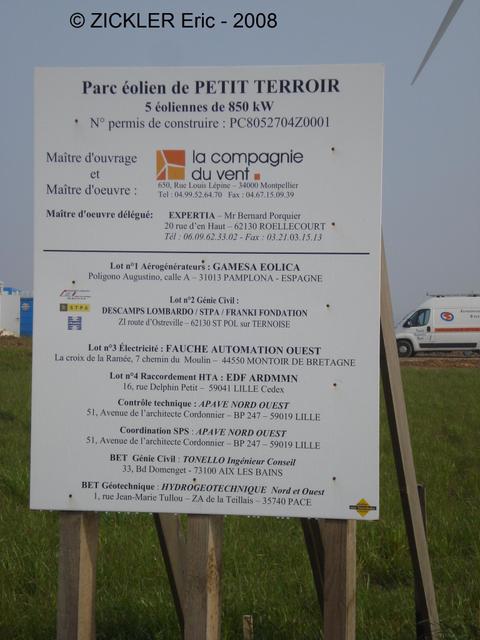

Turbine 6046
Author: Eric Zickler - License: All right reserved
Picture reference: 6046 - Date: 2008

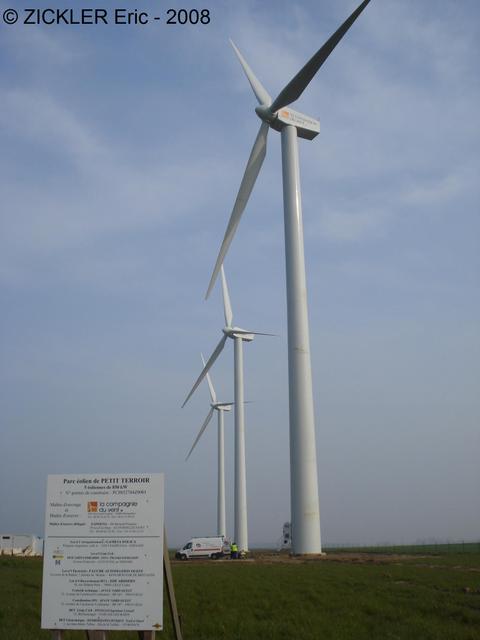

Turbine 6047
