General data

  • Manufacturer: Nordex (Allemagne)
  • Model: N117/3600
  • Product page
  • Rated power: 3,600 kW
  • Rotor diameter: 117 m
  • Available model
  • Wind class: IEC IIa (DIBt III)
  • Offshore model: no
  • Swept area: 10,752 m²
  • Specific area: 2.99 m²/kW
  • Number of blades: 3
  • Power control: Pitch

Rotor

  • Minimum rotor speed: 7,9 rd/min
  • Maximum rotor speed: 14,1 rd/min
  • Cut-in wind speed: 3 m/s
  • Rated wind speed: 13 m/s
  • Cut-off wind speed: 25 m/s

Gear box

  • Gear box: yes
  • Stages: 3

Generator

  • Type: ASYNC DF
  • Voltage: 660 V

Tower

  • Minimum hub height: 91 m
  • Maximum hub height: 141 m

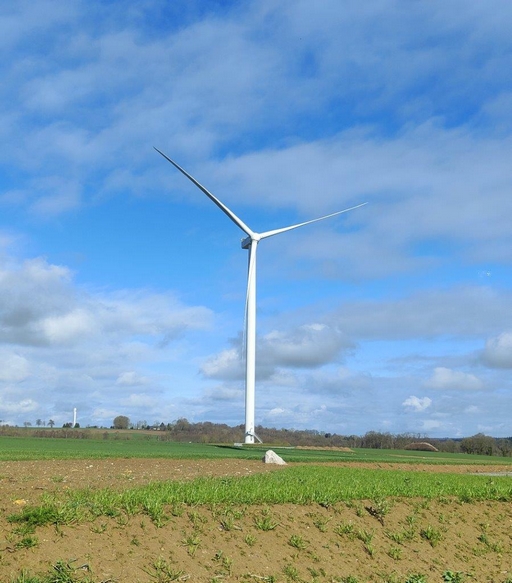

N117/3600 - Nordex - 3600 kW
Laurent Jobart - Alpha Wind

Power curve




Wind farms in the database


Full list (94 wind farms)



Pictures

Turbine 13516
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13516 - Date: 2018
Turbine 13517
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13517 - Date: 2018
Turbine 13518
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13518 - Date: 2018
Turbine 13519
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13519 - Date: 2018
Turbine 13728
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13728 - Date: 2019
Turbine 13729
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13729 - Date: 2019
Turbine 13730
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13730 - Date: 2019
Turbine 13731
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13731 - Date: 2019
Turbine 13732
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13732 - Date: 2019
Turbine 13733
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13733 - Date: 2019
Turbine 13734
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13734 - Date: 2019
Turbine 13735
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13735 - Date: 2019
Turbine 14814
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14814 - Date: 2021
Turbine 14815
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14815 - Date: 2021
Turbine 14816
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14816 - Date: 2021
Turbine 14817
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14817 - Date: 2021
Turbine 14818
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14818 - Date: 2021
Turbine 14819
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14819 - Date: 2021
Turbine 14820
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14820 - Date: 2021
Turbine 14821
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14821 - Date: 2021
Turbine 14822
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14822 - Date: 2021
Turbine 15030
Author: Philippe de Troy - License: All right reserved
Picture reference: 15030 - Date: 2022
Turbine 15031
Author: Philippe de Troy - License: All right reserved
Picture reference: 15031 - Date: 2022
Turbine 15032
Author: Philippe de Troy - License: All right reserved
Picture reference: 15032 - Date: 2022
Turbine 15033
Author: Philippe de Troy - License: All right reserved
Picture reference: 15033 - Date: 2022
Turbine 15034
Author: Philippe de Troy - License: All right reserved
Picture reference: 15034 - Date: 2022
Turbine 15035
Author: Philippe de Troy - License: All right reserved
Picture reference: 15035 - Date: 2022
Turbine 15628
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 15628 - Date: 2024
Turbine 15629
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 15629 - Date: 2024
Turbine 15630
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 15630 - Date: 2024
Turbine 15631
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 15631 - Date: 2024
Turbine 15632
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 15632 - Date: 2024
Turbine 15633
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 15633 - Date: 2024
Turbine 15900
Author: Gabriel - License: All right reserved
Picture reference: 15900 - Date: 2024
Turbine 15901
Author: Gabriel - License: All right reserved
Picture reference: 15901 - Date: 2024
Turbine 15902
Author: Gabriel - License: All right reserved
Picture reference: 15902 - Date: 2024
Turbine 15903
Author: Gabriel - License: All right reserved
Picture reference: 15903 - Date: 2024
Turbine 15904
Author: Gabriel - License: All right reserved
Picture reference: 15904 - Date: 2024
Turbine 15905
Author: Gabriel - License: All right reserved
Picture reference: 15905 - Date: 2024
Turbine 16534
Author: Quentin Biard - License: All right reserved
Picture reference: 16534 - Date: 2025

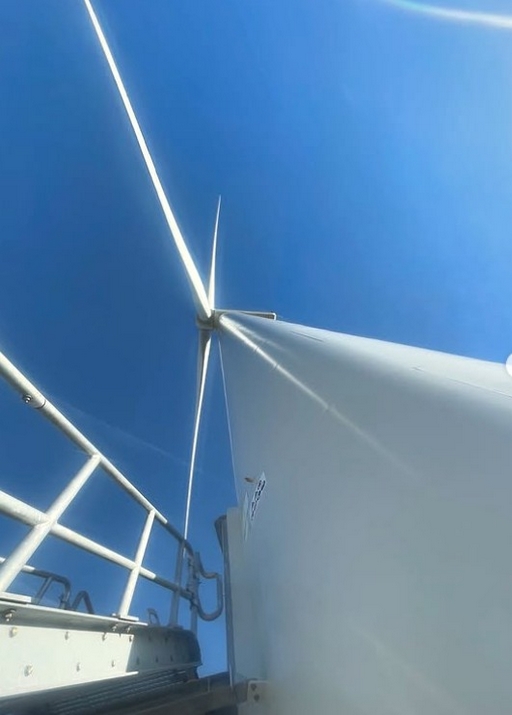

Turbine 16535
Author: Quentin Biard - License: All right reserved
Picture reference: 16535 - Date: 2025
Turbine 16536
Author: Quentin Biard - License: All right reserved
Picture reference: 16536 - Date: 2025

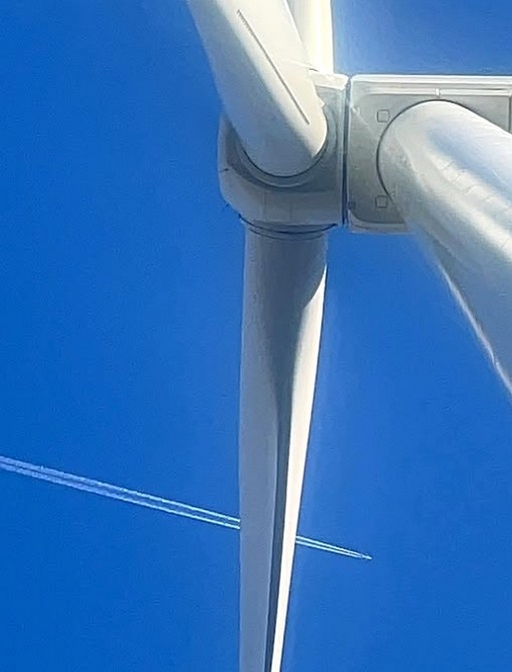

Turbine 16537
Author: Quentin Biard - License: All right reserved
Picture reference: 16537 - Date: 2025

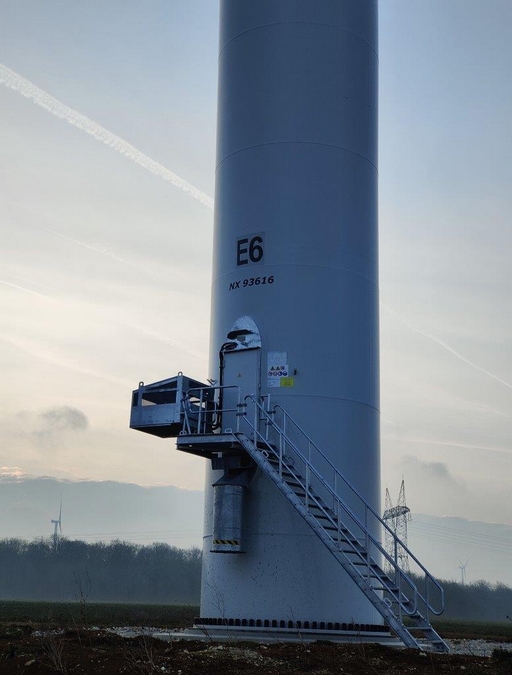

Turbine 16637
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16637 - Date: 2025

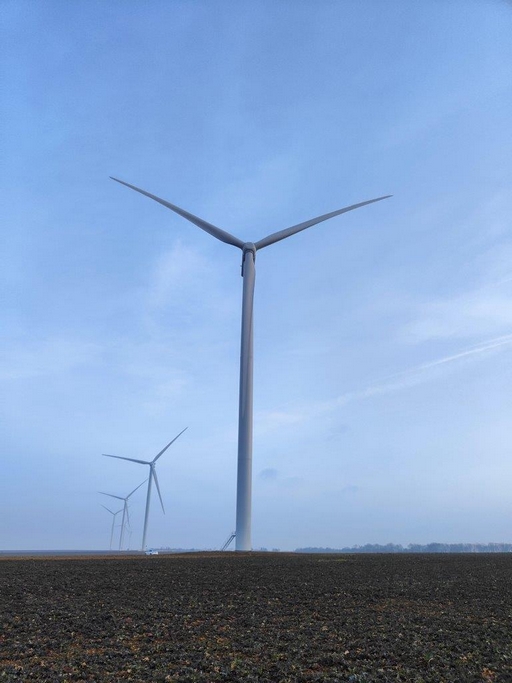

Turbine 16638
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16638 - Date: 2025

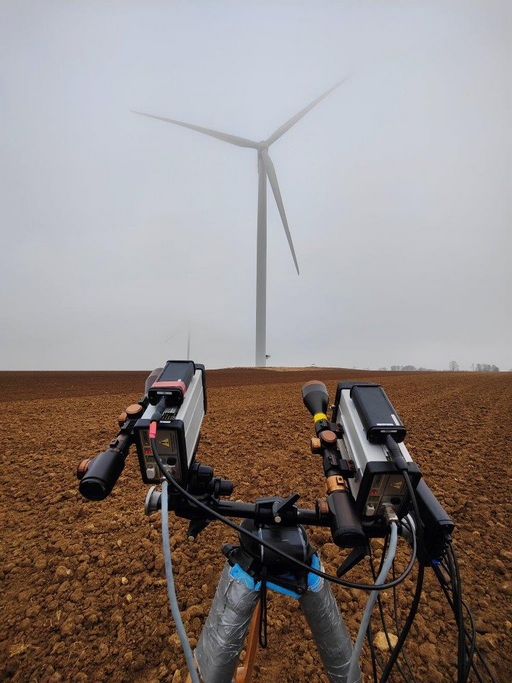

Turbine 16639
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16639 - Date: 2025

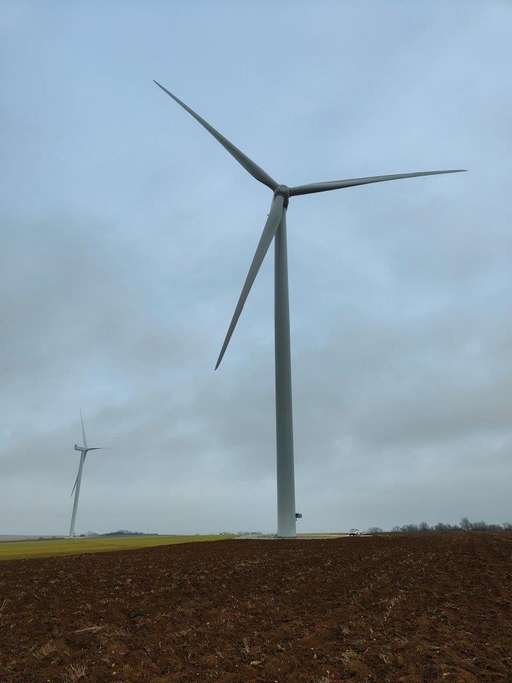

Turbine 16640
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16640 - Date: 2025

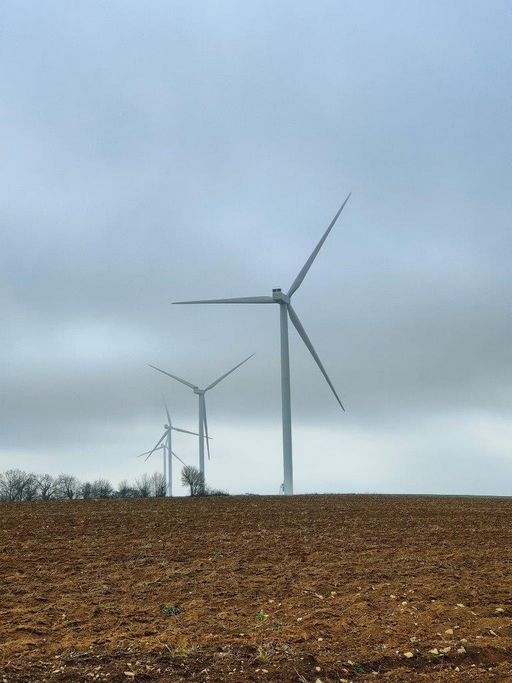

Turbine 16641
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16641 - Date: 2025

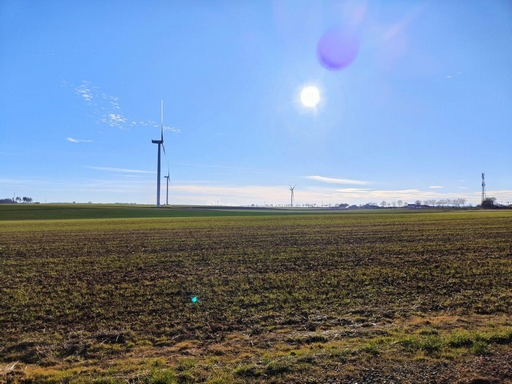

Turbine 16752
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16752 - Date: 2025

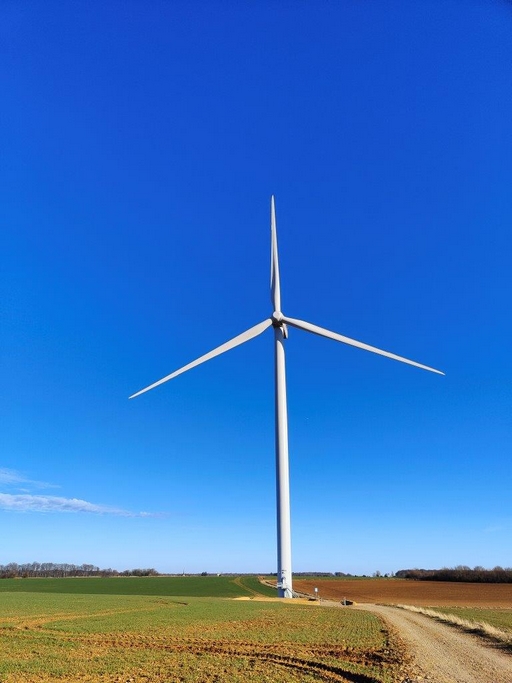

Turbine 16753
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16753 - Date: 2025

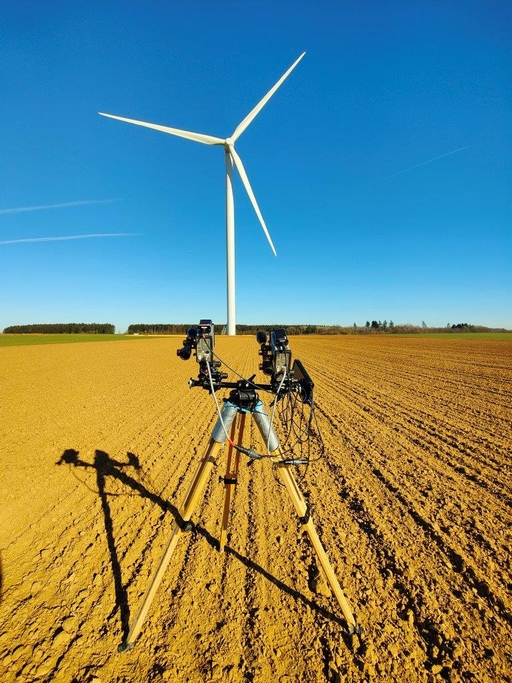

Turbine 16754
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16754 - Date: 2025

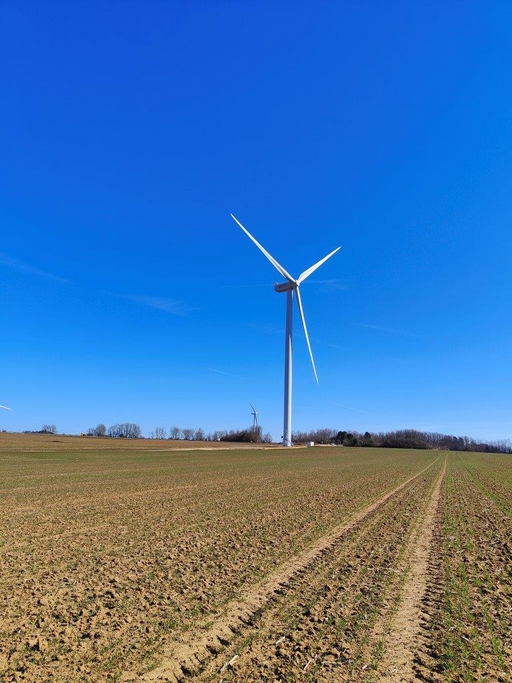

Turbine 16755
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16755 - Date: 2025

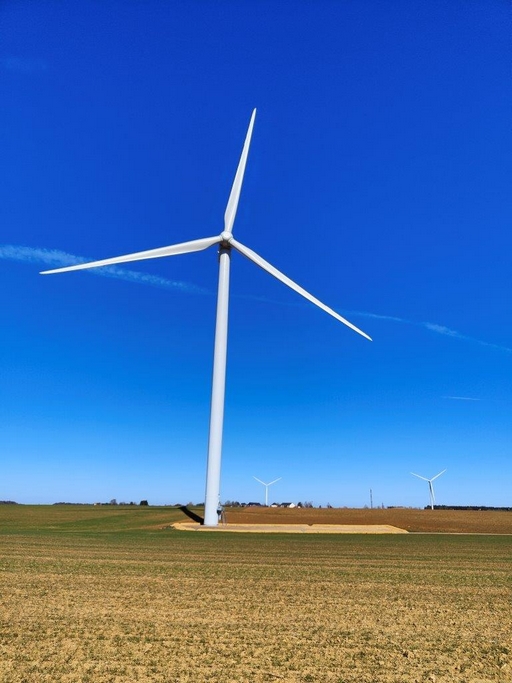

Turbine 16756
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16756 - Date: 2025

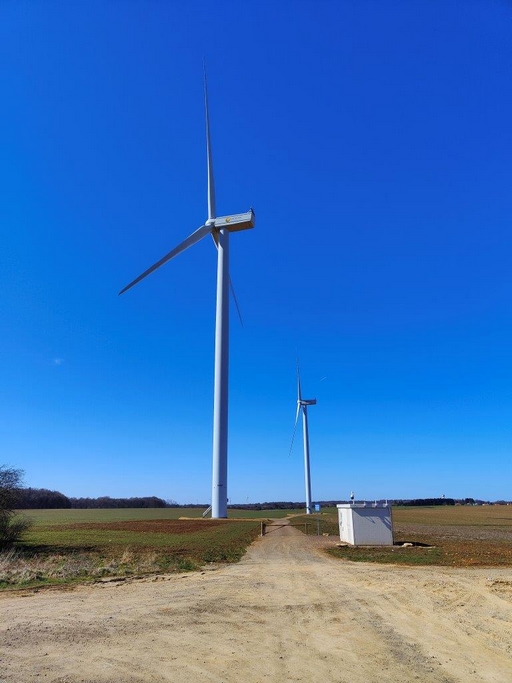

Turbine 16757
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16757 - Date: 2025
Turbine 17182
Author: Guillaume Richard - License: All right reserved
Picture reference: 17182 - Date: 2025
Turbine 17183
Author: Guillaume Richard - License: All right reserved
Picture reference: 17183 - Date: 2025
Turbine 17184
Author: Guillaume Richard - License: All right reserved
Picture reference: 17184 - Date: 2025
Turbine 17185
Author: Guillaume Richard - License: All right reserved
Picture reference: 17185 - Date: 2025
Turbine 17186
Author: Guillaume Richard - License: All right reserved
Picture reference: 17186 - Date: 2025


Update for this sheet: 9 July 2025
