General data

  • Manufacturer: Vestas (Danemark)
  • Model: V136/4000-4200
  • Product page
  • Rated power: 4,000 kW
  • Rotor diameter: 136 m
  • Available model
  • Wind class: IEC Iib/S
  • Offshore model: no
  • Swept area: 14,527 m²
  • Specific area: 3.64 m²/kW
  • Number of blades: 3
  • Power control: Pitch
  • Commissioning: 2017

Rotor

  • Cut-in wind speed: 3 m/s
  • Rated wind speed: 13,5 m/s
  • Cut-off wind speed: 25 m/s

Gear box

  • Gear box: yes
  • Stages: 3

Generator

  • Number: 1

Tower

  • Minimum hub height: 149 m
  • Maximum hub height: 166 m

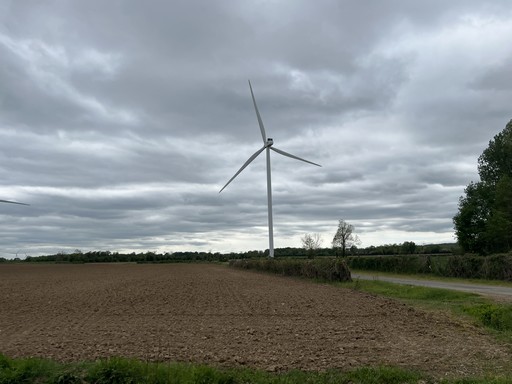

V136/4000-4200 - Vestas - 4000 kW
Sylvain Fily - Alpha Wind

Power curve




Wind farms in the database


Full list (119 wind farms)



Pictures

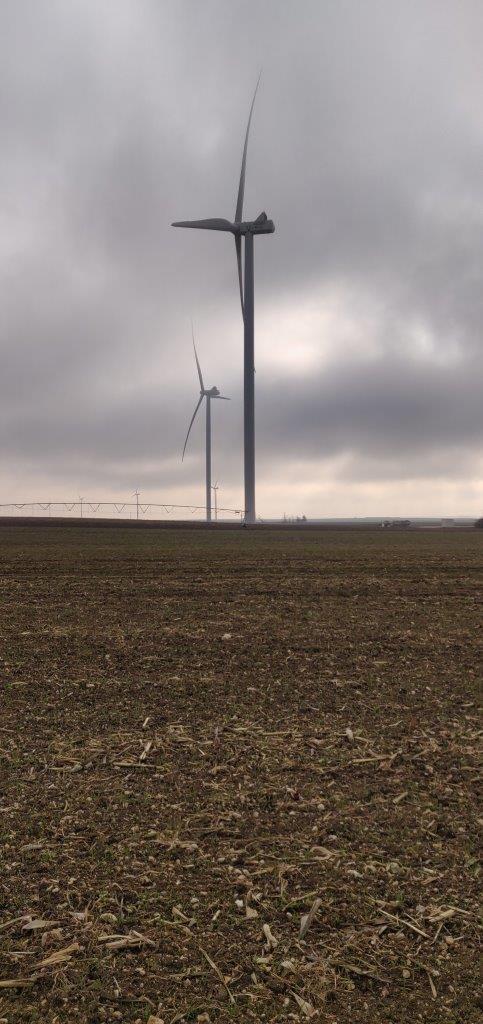

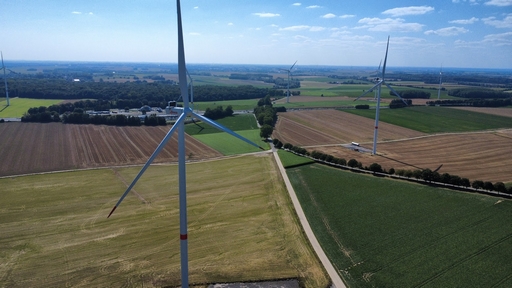

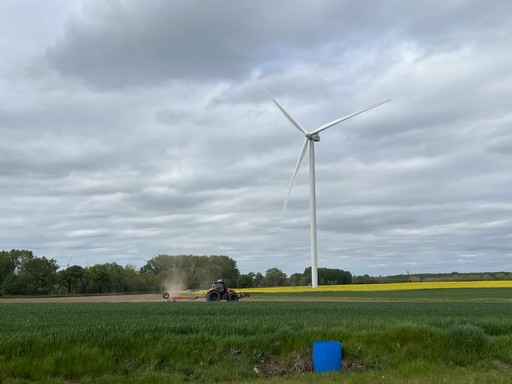

Turbine 14803
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14803 - Date: 2021

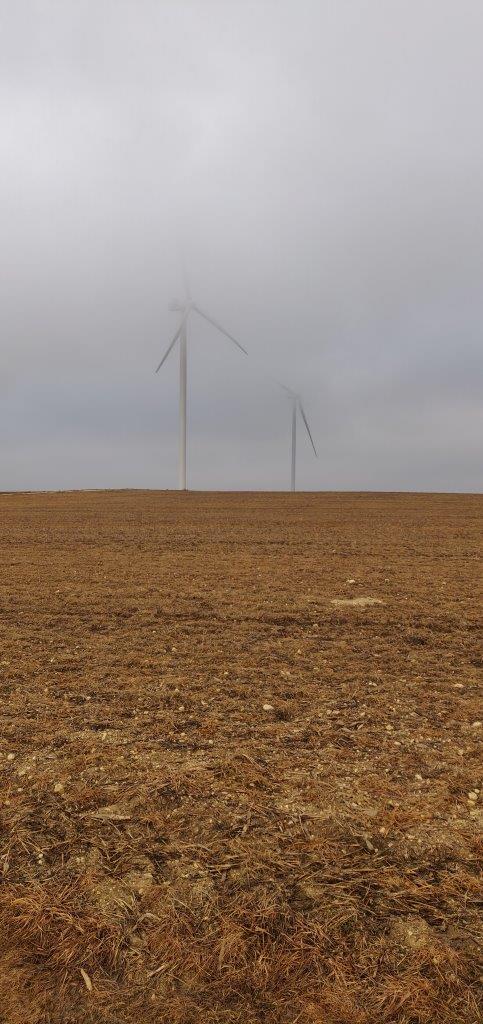

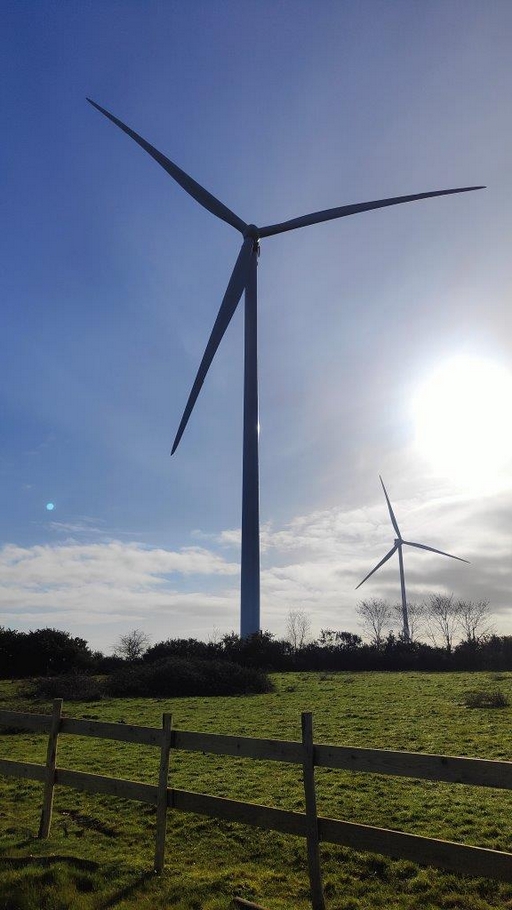

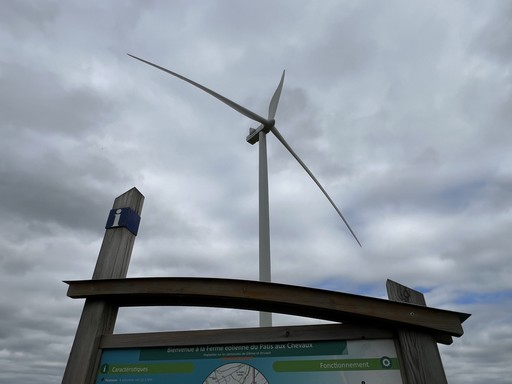

Turbine 14804
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14804 - Date: 2021

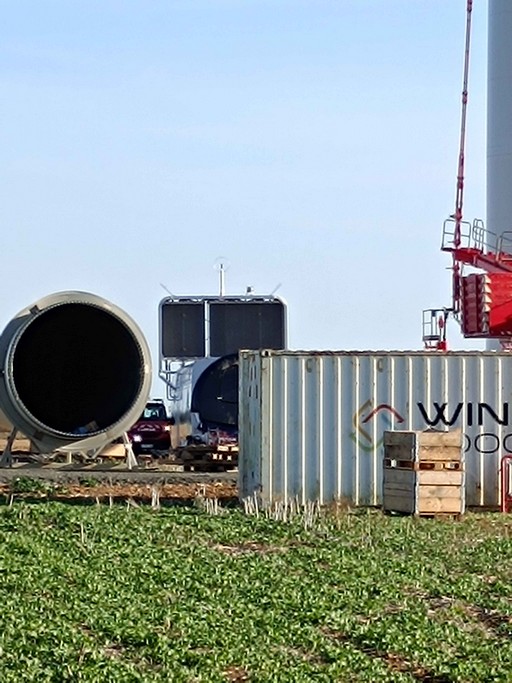

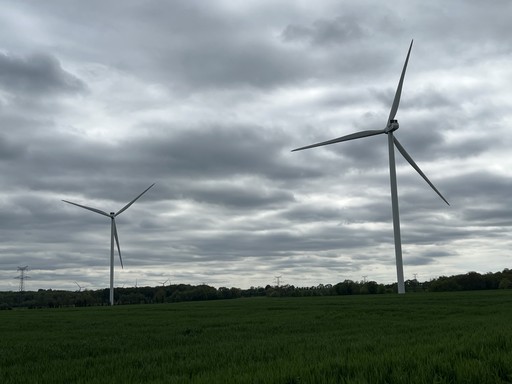

Turbine 14805
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14805 - Date: 2021

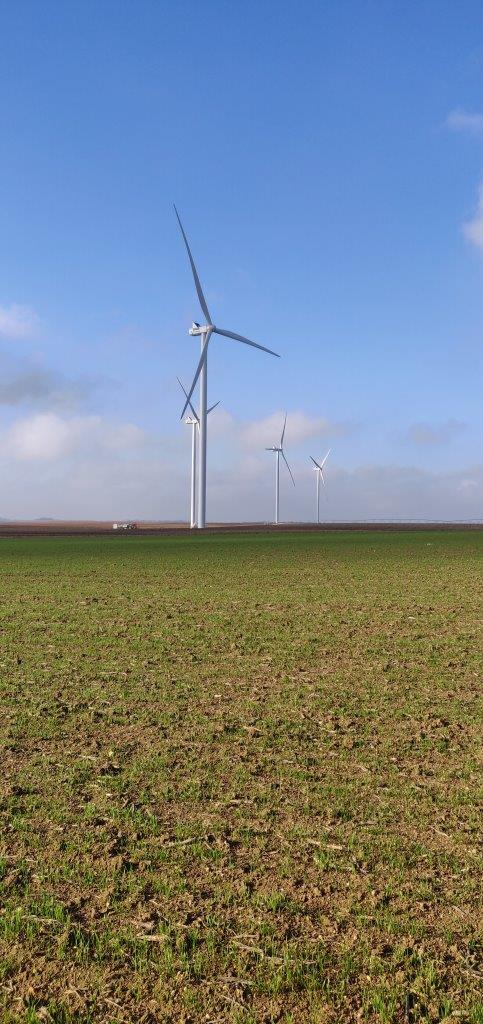

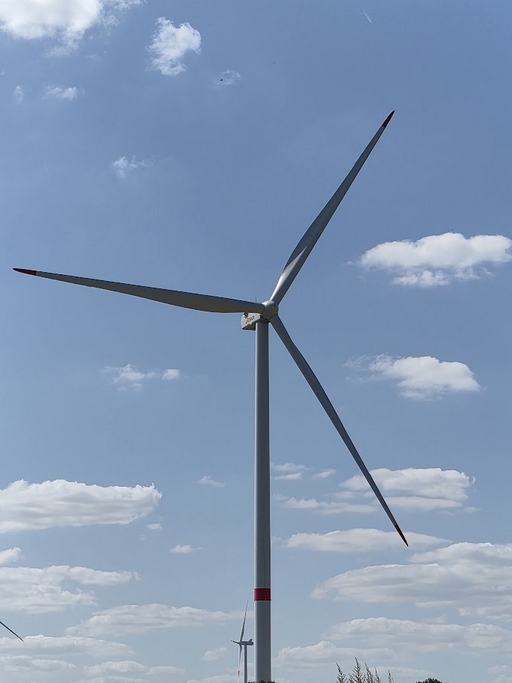

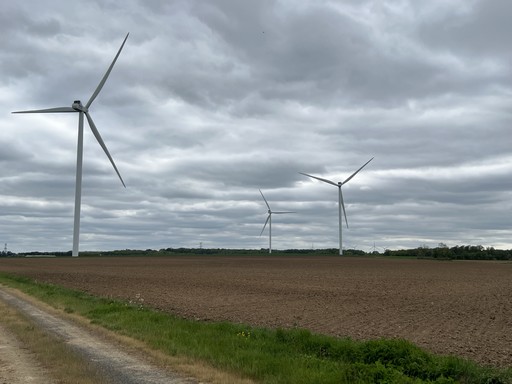

Turbine 14806
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14806 - Date: 2021

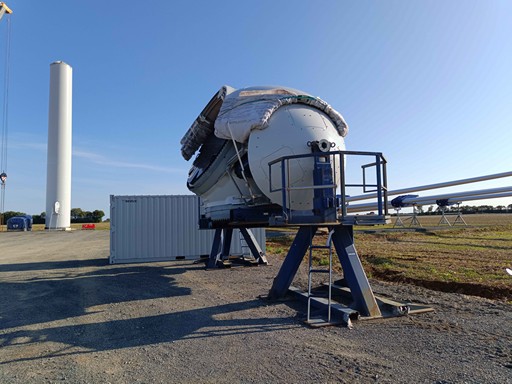

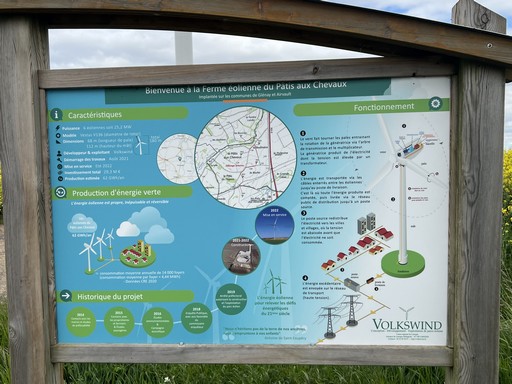

Turbine 16071
Author: Soan Goichon - License: All right reserved
Picture reference: 16071 - Date: 2024

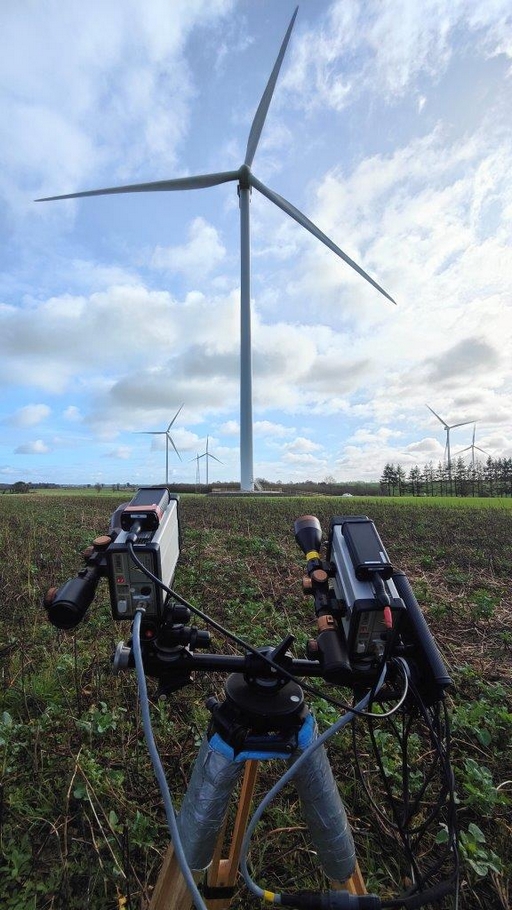

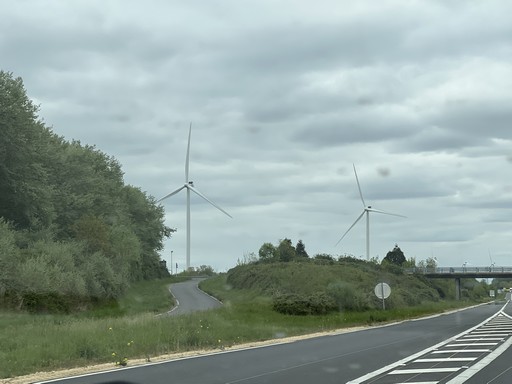

Turbine 16554
Author: Soan Goichon - License: All right reserved
Picture reference: 16554 - Date: 2025

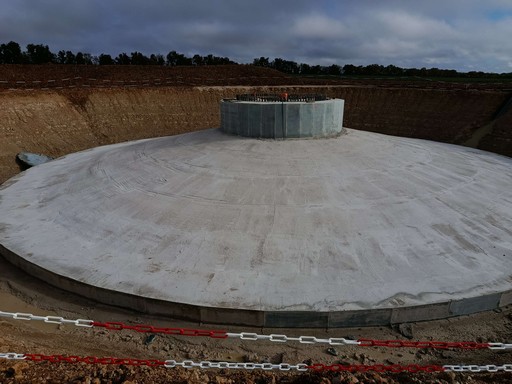

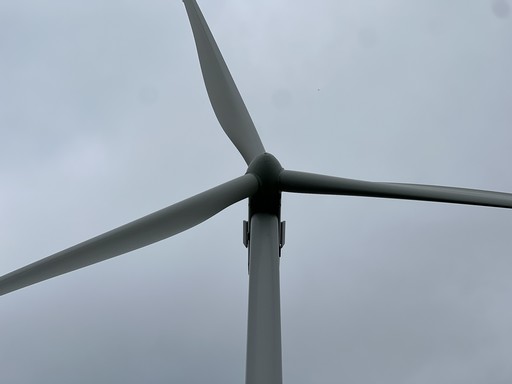

Turbine 16555
Author: Soan Goichon - License: All right reserved
Picture reference: 16555 - Date: 2025

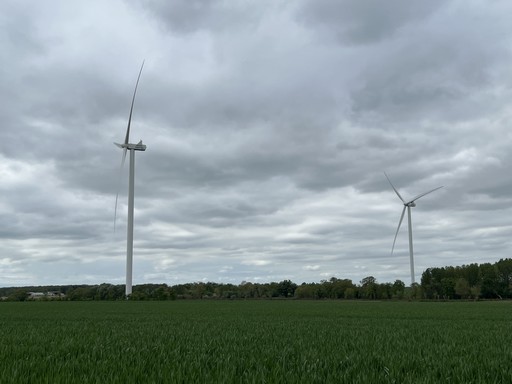

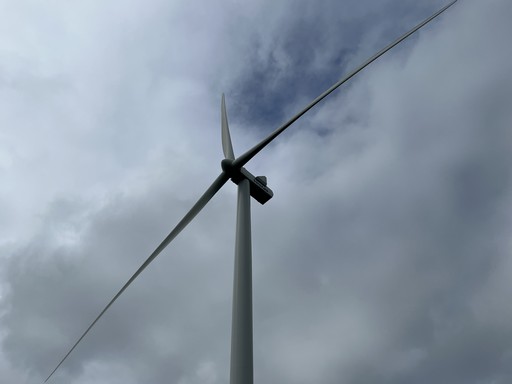

Turbine 16556
Author: Soan Goichon - License: All right reserved
Picture reference: 16556 - Date: 2025
Turbine 16557
Author: Soan Goichon - License: All right reserved
Picture reference: 16557 - Date: 2025
Turbine 16558
Author: Soan Goichon - License: All right reserved
Picture reference: 16558 - Date: 2025
Turbine 16559
Author: Soan Goichon - License: All right reserved
Picture reference: 16559 - Date: 2025
Turbine 16560
Author: Soan Goichon - License: All right reserved
Picture reference: 16560 - Date: 2025
Turbine 16561
Author: Soan Goichon - License: All right reserved
Picture reference: 16561 - Date: 2025
Turbine 16562
Author: Soan Goichon - License: All right reserved
Picture reference: 16562 - Date: 2025
Turbine 16633
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 16633 - Date: 2025
Turbine 16634
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 16634 - Date: 2025
Turbine 16635
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 16635 - Date: 2025
Turbine 16636
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 16636 - Date: 2025

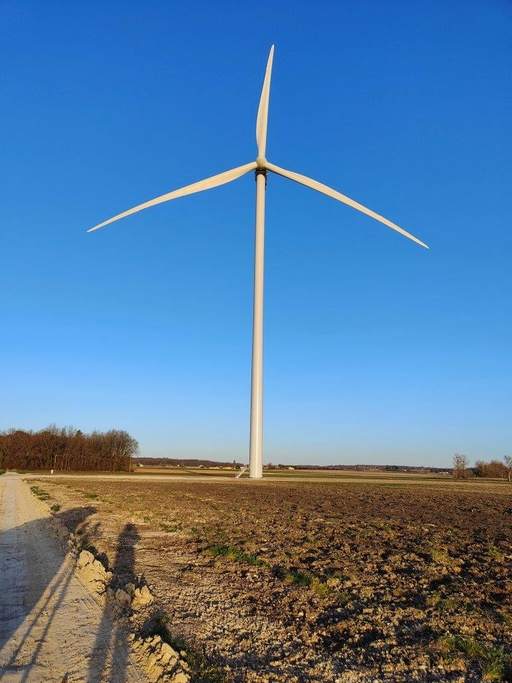

Turbine 16708
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16708 - Date: 2025

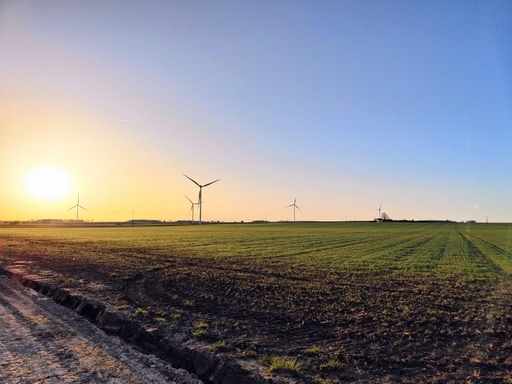

Turbine 16709
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16709 - Date: 2025

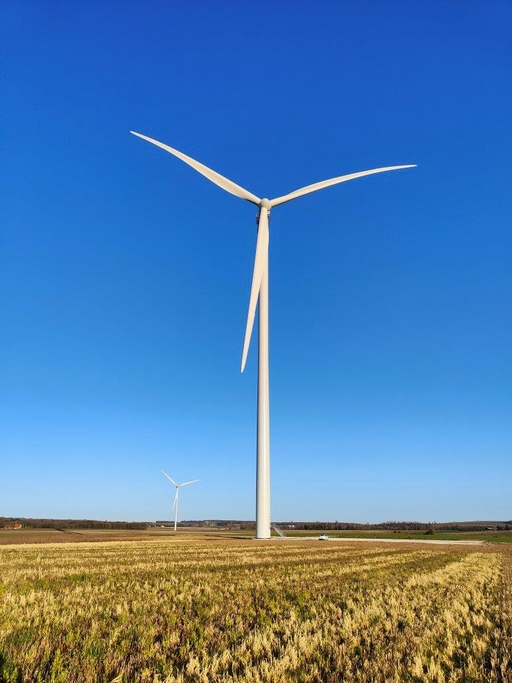

Turbine 16710
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16710 - Date: 2025

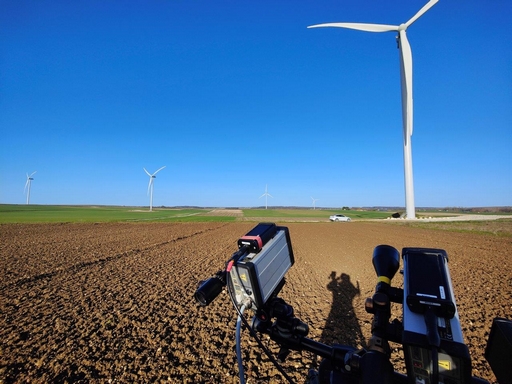

Turbine 16711
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16711 - Date: 2025

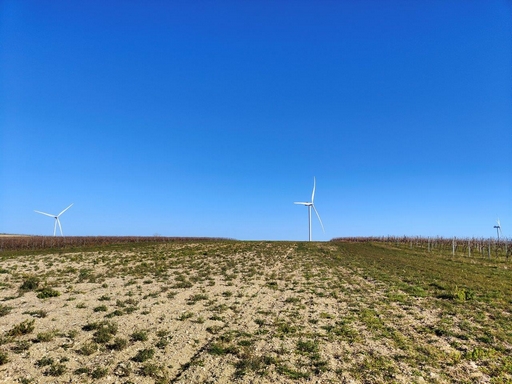

Turbine 16712
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16712 - Date: 2025

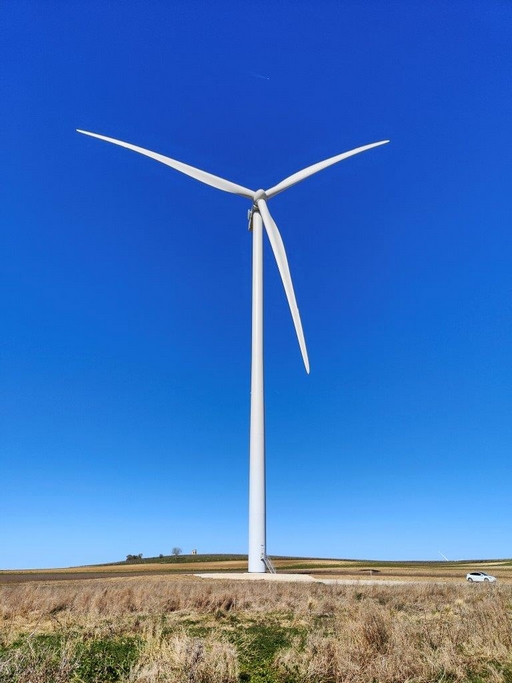

Turbine 16713
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16713 - Date: 2025

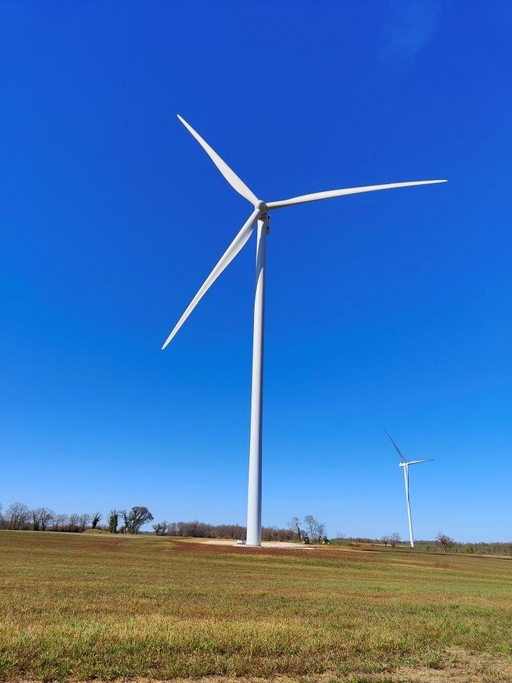

Turbine 16728
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16728 - Date: 2025

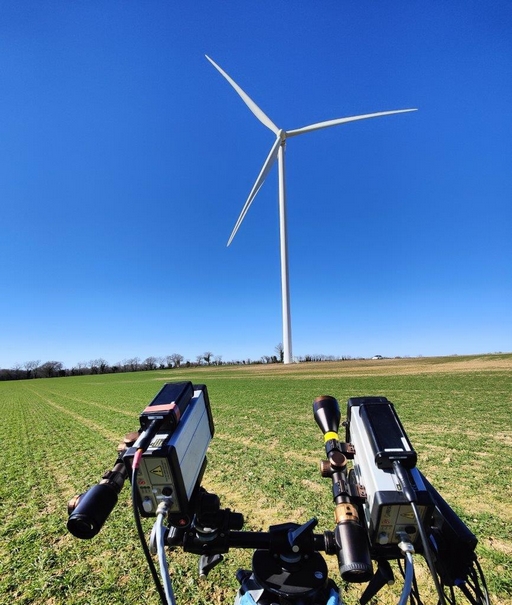

Turbine 16729
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16729 - Date: 2025

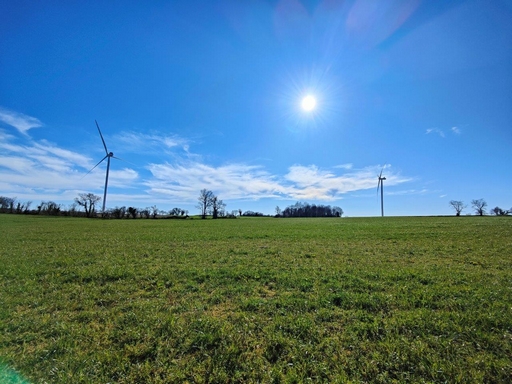

Turbine 16730
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 16730 - Date: 2025


Update for this sheet: 2 May 2025
