General data

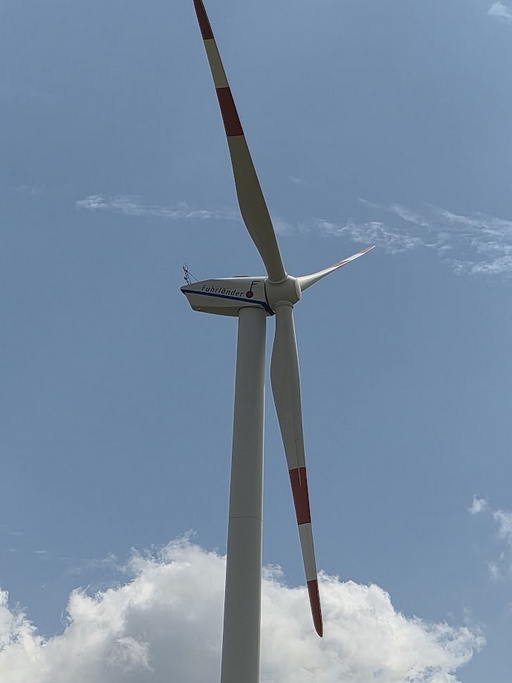

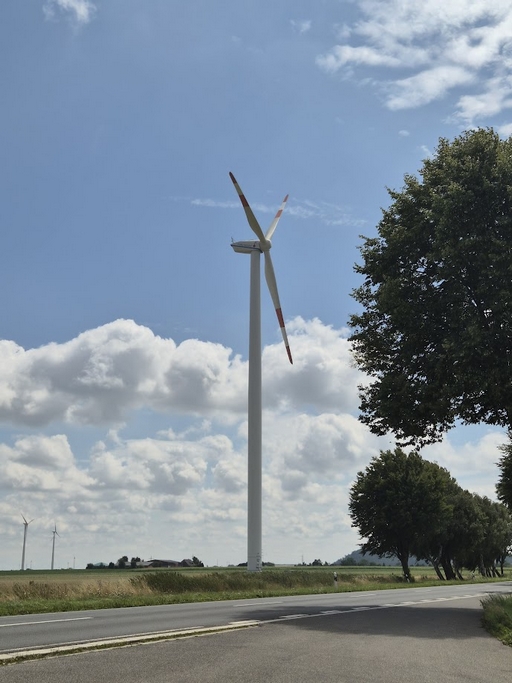

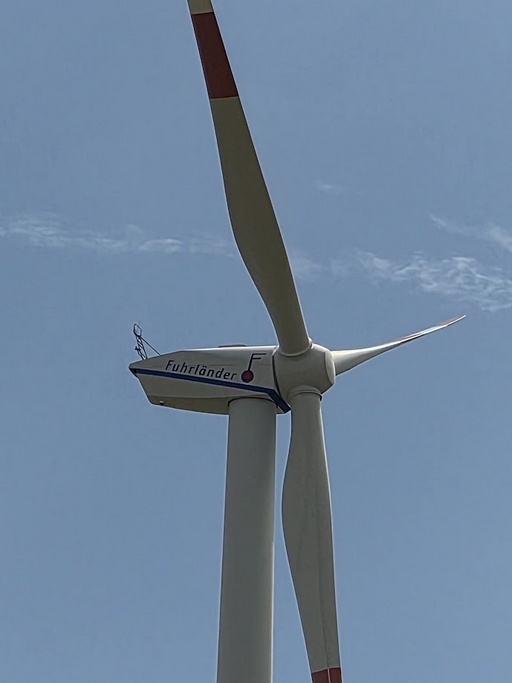

  • Manufacturer: Fuhrländer (Germany)
  • Model: FL MD/77
  • Rated power: 1,500 kW
  • Rotor diameter: 77 m
  • No more available
  • Offshore model: no
  • Swept area: 4,657 m²
  • Power density: 3.11 m²/kW
  • Number of blades: 3
  • Power control: Pitch

Weights

  • Nacelle: 56 tons
  • Tower: 93 - 260 tons
  • Rotor + hub: 33 tons
  • Total: 182 - 347 tons

Rotor

  • Minimum rotor speed: 9,7 rd/min
  • Maximum rotor speed: 18,3 rd/min
  • Cut-in wind speed: 3,5 m/s
  • Rated wind speed: 13,5 m/s
  • Cut-off wind speed: 20 m/s
  • Manufacturer: LM Glasfiber

Gear box

  • Gear box: yes
  • Stages: 3
  • Gear ratio: 104
  • Manufacturer: Loher, Weier

Generator

  • Type: DFIG
  • Number: 1
  • Maximum speed: 1800 rounds/minute
  • Voltage: 690 V

Tower

  • Minimum hub height: 61,5 m
  • Maximum hub height: 114,5 m
PDF

Power curve



(Air density: 1,225 kg/m3)


Wind farms in the database


Full list (55 wind farms)


Update for this sheet: 7 June 2018
