General data

  • Manufacturer: Turbowinds (Belgique)
  • Model: T400-34
  • Rated power: 400 kW
  • Rotor diameter: 34 m
  • No more available
  • Offshore model: no
  • Swept area: 908 m²
  • Specific area: 2.27 m²/kW
  • Number of blades: 3
  • Power control: Stall

Weights

  • Tower: 36 tons
  • Total: 48 tons

Rotor

  • Minimum rotor speed: 22 rd/min
  • Maximum rotor speed: 33 rd/min
  • Cut-in wind speed: 3 m/s
  • Rated wind speed: 14 m/s
  • Cut-off wind speed: 25 m/s

Gear box

  • Gear box: yes
  • Stages: 3

Generator

  • Type: ASYNC
  • Number: 1
  • Maximum speed: 1500 rounds/minute
  • Voltage: 690 V

Tower

  • Minimum hub height: 30 m
  • Maximum hub height: 50 m


T400-34 - Turbowinds - 400 kW
Vent de l’Artois

Power curve



(Air density: 1,225 kg/m3)


Wind farms in the database


Pictures

Turbine 4699
Author: Wim - License: All right reserved
Picture reference: 4699
Turbine 4700
Author: Wim - License: All right reserved
Picture reference: 4700
Turbine 5598
Author: Wim - License: All right reserved
Picture reference: 5598
Turbine 5599
Author: Wim - License: All right reserved
Picture reference: 5599
Turbine 8382
Author: Vent de l’Artois - License: All right reserved
Picture reference: 8382 - Date: 2009
Turbine 8383
Author: Vent de l’Artois - License: All right reserved
Picture reference: 8383 - Date: 2009

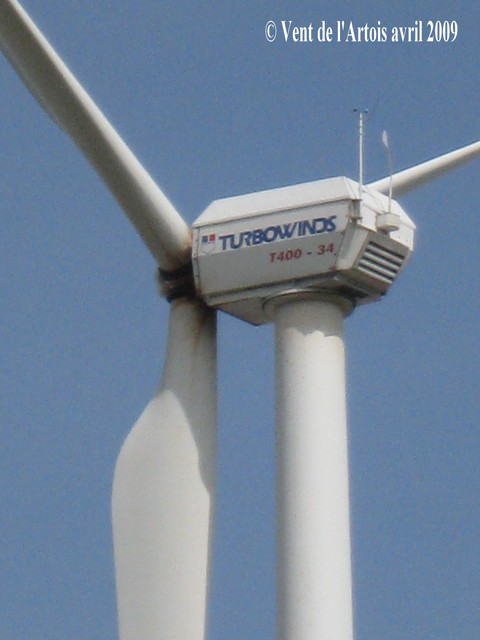

Turbine 8384
Author: Vent de l’Artois - License: All right reserved
Picture reference: 8384 - Date: 2009
Turbine 8385
Author: Vent de l’Artois - License: All right reserved
Picture reference: 8385 - Date: 2009
