General data

  • Manufacturer: Alstom Power (France)
  • Model: 110
  • Rated power: 3,000 kW
  • Rotor diameter: 109.8 m
  • Available model
  • Wind class: IEC IIa/Is
  • Offshore model: no
  • Swept area: 9,469 m²
  • Specific area: 3.16 m²/kW
  • Number of blades: 3
  • Power control: Pitch

Rotor

  • Minimum rotor speed: 7,7 rd/min
  • Maximum rotor speed: 13,6 rd/min
  • Cut-in wind speed: 3 m/s
  • Rated wind speed: 11,5 m/s
  • Cut-off wind speed: 25 m/s

Gear box

  • Gear box: yes
  • Stages: 3

Generator

  • Type: ASYNC DF
  • Number: 1
  • Voltage: 1000 V

Tower

  • Minimum hub height: 75 m
  • Maximum hub height: 100 m

110 - Alstom Power - 3000 kW
Laurent Jobart - Alpha Wind

Wind farms in the database


Pictures

Turbine 12945
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12945 - Date: 2017
Turbine 12946
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12946 - Date: 2017
Turbine 12947
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12947 - Date: 2017
Turbine 12948
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12948 - Date: 2017
Turbine 12949
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12949 - Date: 2017
Turbine 13866
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13866 - Date: 2019
Turbine 13867
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13867 - Date: 2019
Turbine 13868
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13868 - Date: 2019
Turbine 13869
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13869 - Date: 2019
Turbine 13870
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13870 - Date: 2019
Turbine 13871
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13871 - Date: 2019

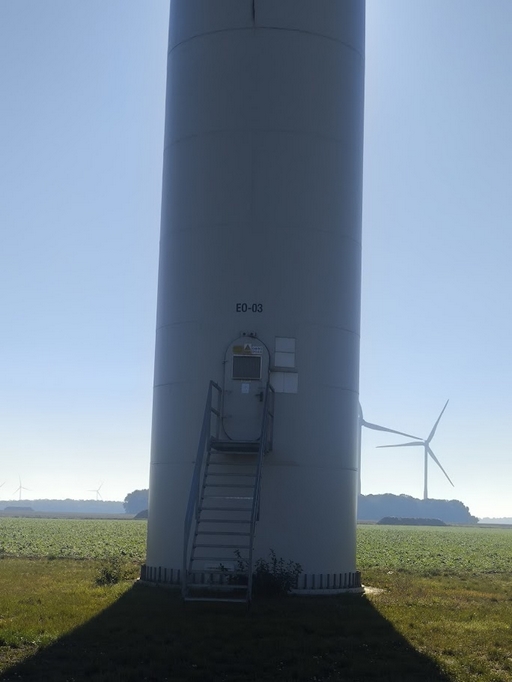

Turbine 15805
Author: Gabriel - License: All right reserved
Picture reference: 15805 - Date: 2024

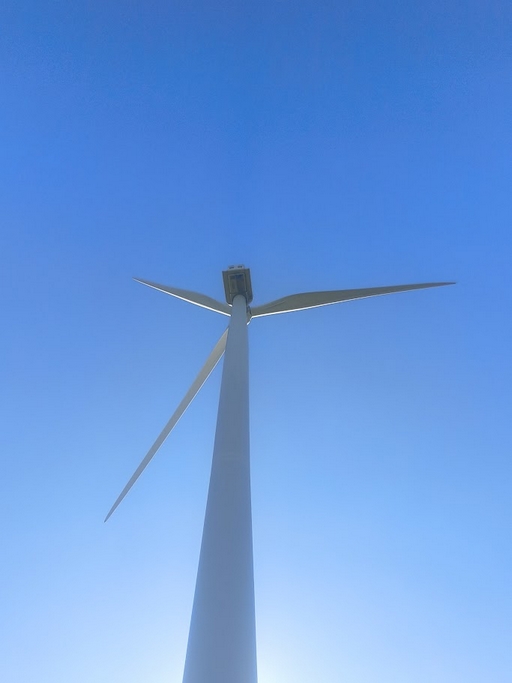

Turbine 15806
Author: Gabriel - License: All right reserved
Picture reference: 15806 - Date: 2024

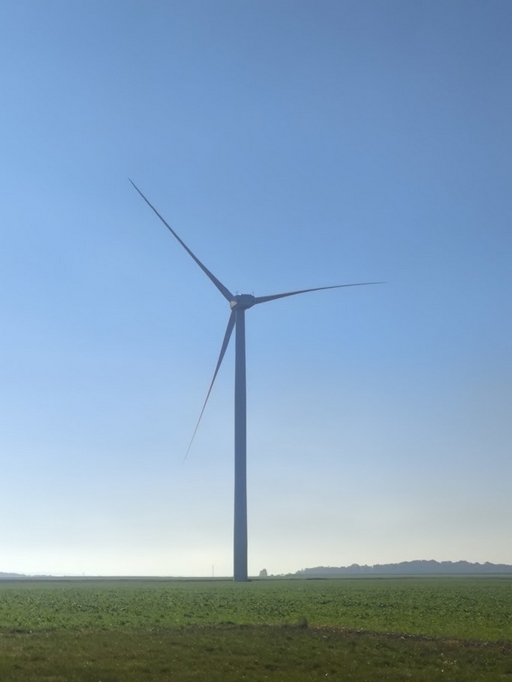

Turbine 15807
Author: Gabriel - License: All right reserved
Picture reference: 15807 - Date: 2024

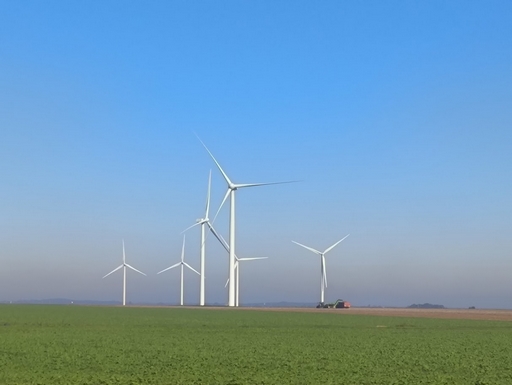

Turbine 15808
Author: Gabriel - License: All right reserved
Picture reference: 15808 - Date: 2024

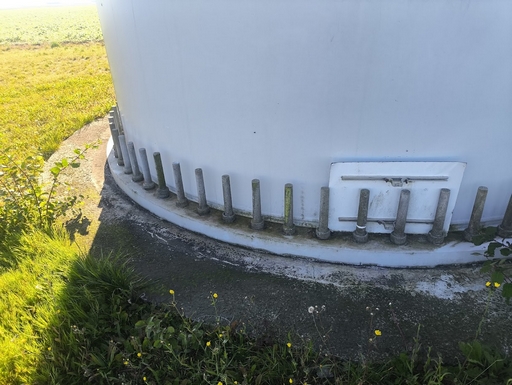

Turbine 15809
Author: Gabriel - License: All right reserved
Picture reference: 15809 - Date: 2024

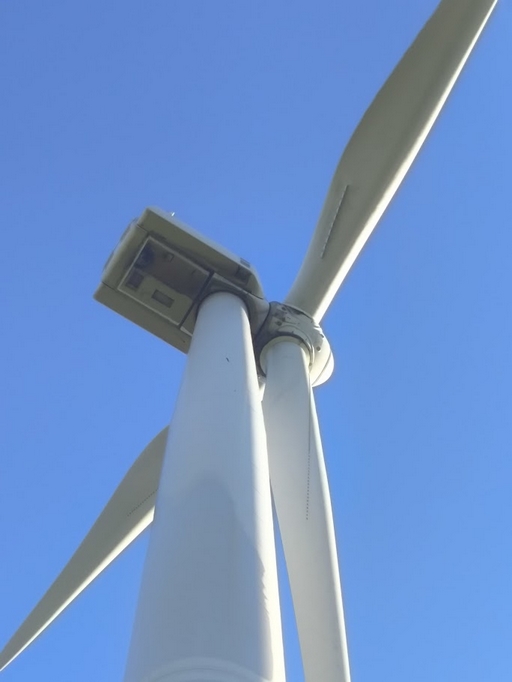

Turbine 15810
Author: Gabriel - License: All right reserved
Picture reference: 15810 - Date: 2024

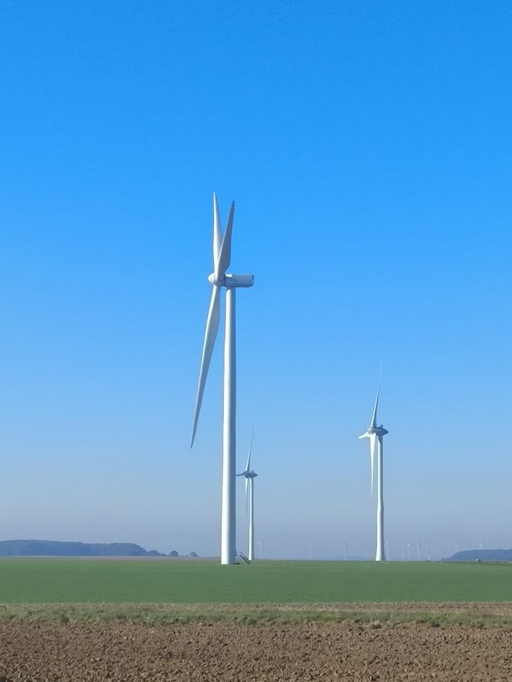

Turbine 15811
Author: Gabriel - License: All right reserved
Picture reference: 15811 - Date: 2024
Turbine 16277
Author: Gabriel - License: All right reserved
Picture reference: 16277 - Date: 2024

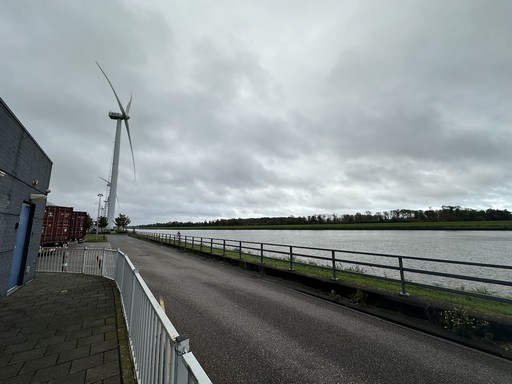

Turbine 16278
Author: Gabriel - License: All right reserved
Picture reference: 16278 - Date: 2024

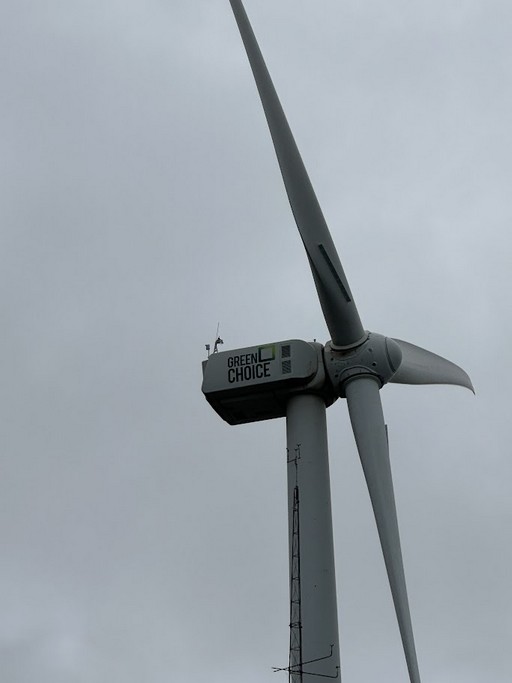

Turbine 16279
Author: Gabriel - License: All right reserved
Picture reference: 16279 - Date: 2024

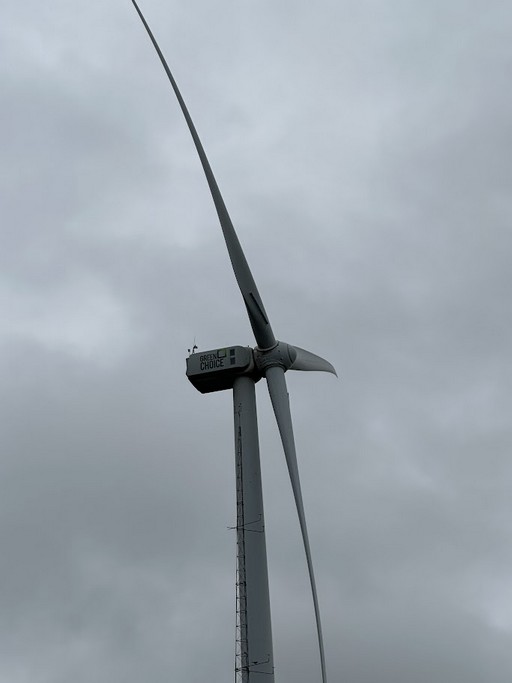

Turbine 16280
Author: Gabriel - License: All right reserved
Picture reference: 16280 - Date: 2024
Turbine 16512
Author: Quentin Biard - License: All right reserved
Picture reference: 16512 - Date: 2025
Turbine 16513
Author: Quentin Biard - License: All right reserved
Picture reference: 16513 - Date: 2025
Turbine 16514
Author: Quentin Biard - License: All right reserved
Picture reference: 16514 - Date: 2025



Update for this sheet: 7 June 2018
