General data

  • Manufacturer: Goldwind (China)
  • Model: S50/750
  • Rated power: 750 kW
  • Rotor diameter: 50 m
  • No more available
  • Wind class: IEC IIa
  • Offshore model: no
  • Swept area: 1,964 m²
  • Power density: 2.62 m²/kW
  • Number of blades: 3
  • Power control: Stall

Rotor

  • Maximum rotor speed: 21,4 rd/min
  • Cut-in wind speed: 3,5 m/s
  • Rated wind speed: 14,5 m/s
  • Cut-off wind speed: 25 m/s

Gear box

  • Gear box: yes
  • Stages: 3
  • Gear ratio: 70

Generator

  • Type: DFIG
  • Number: 1
  • Maximum speed: 1500 rounds/minute
  • Voltage: 690 V
  • Manufacturer: Goldwind

Tower

  • Minimum hub height: 60 m
  • Maximum hub height: 100 m
PDF

S50/750 - Goldwind - 750 kW
Laurent Jobart - Alpha Wind


Wind farms in the database


Full list (38 wind farms)



Pictures

Turbine 7538
Author: François Bonnenfant - License: All right reserved
Picture reference: 7538 - Date: 2008
Turbine 7539
Author: François Bonnenfant - License: All right reserved
Picture reference: 7539 - Date: 2008
Turbine 7540
Author: François Bonnenfant - License: All right reserved
Picture reference: 7540 - Date: 2008
Turbine 7541
Author: François Bonnenfant - License: All right reserved
Picture reference: 7541 - Date: 2008
Turbine 7542
Author: François Bonnenfant - License: All right reserved
Picture reference: 7542 - Date: 2008
Turbine 7543
Author: François Bonnenfant - License: All right reserved
Picture reference: 7543 - Date: 2008
Turbine 7544
Author: François Bonnenfant - License: All right reserved
Picture reference: 7544 - Date: 2008
Turbine 7545
Author: François Bonnenfant - License: All right reserved
Picture reference: 7545 - Date: 2008
Turbine 7546
Author: François Bonnenfant - License: All right reserved
Picture reference: 7546 - Date: 2008
Turbine 7547
Author: François Bonnenfant - License: All right reserved
Picture reference: 7547 - Date: 2008
Turbine 7548
Author: François Bonnenfant - License: All right reserved
Picture reference: 7548 - Date: 2008
Turbine 7549
Author: François Bonnenfant - License: All right reserved
Picture reference: 7549 - Date: 2008
Turbine 7550
Author: François Bonnenfant - License: All right reserved
Picture reference: 7550 - Date: 2008
Turbine 7551
Author: François Bonnenfant - License: All right reserved
Picture reference: 7551 - Date: 2008
Turbine 7552
Author: François Bonnenfant - License: All right reserved
Picture reference: 7552 - Date: 2008
Turbine 7553
Author: François Bonnenfant - License: All right reserved
Picture reference: 7553 - Date: 2008

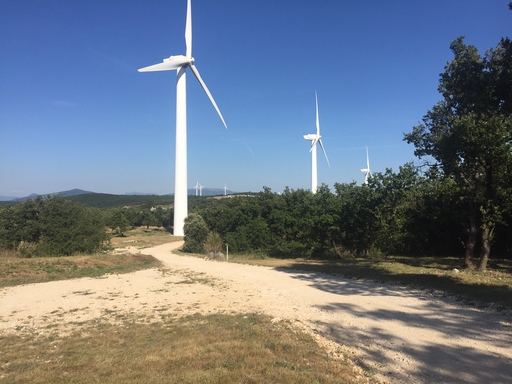

Turbine 12950
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12950 - Date: 2017

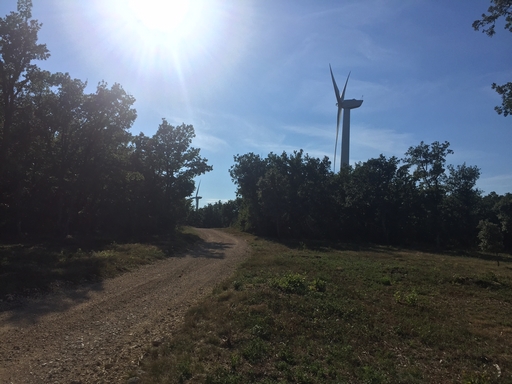

Turbine 12951
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12951 - Date: 2017

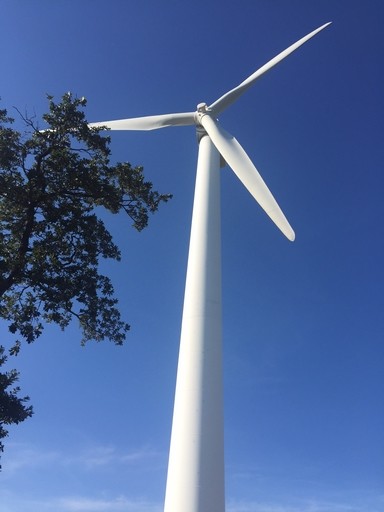

Turbine 12952
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12952 - Date: 2017

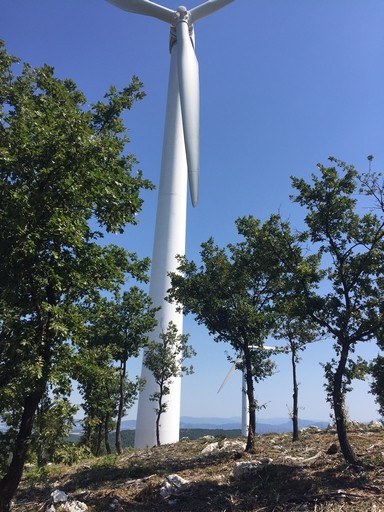

Turbine 12953
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12953 - Date: 2017

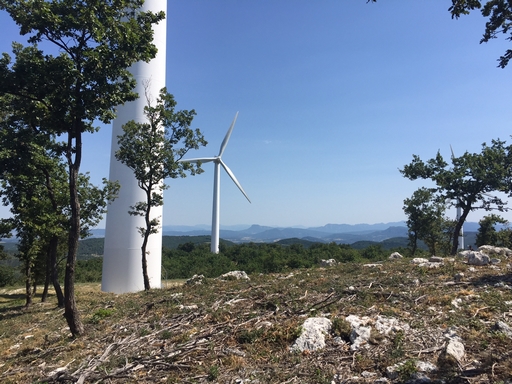

Turbine 12954
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12954 - Date: 2017

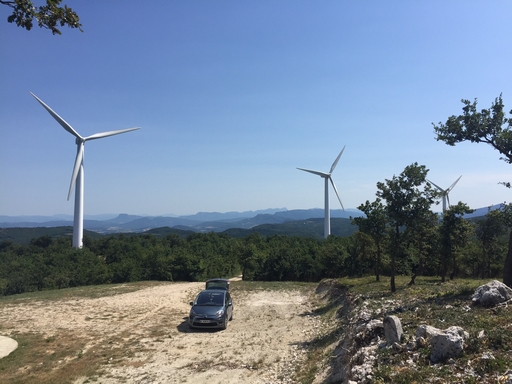

Turbine 12955
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12955 - Date: 2017

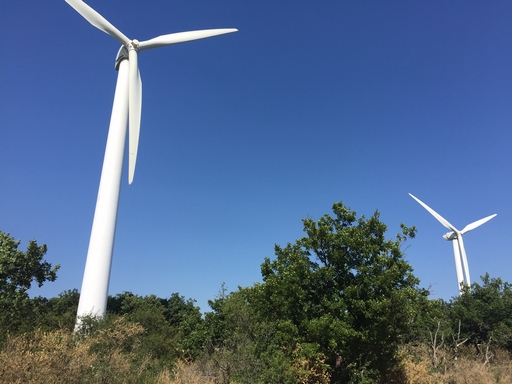

Turbine 12956
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12956 - Date: 2017

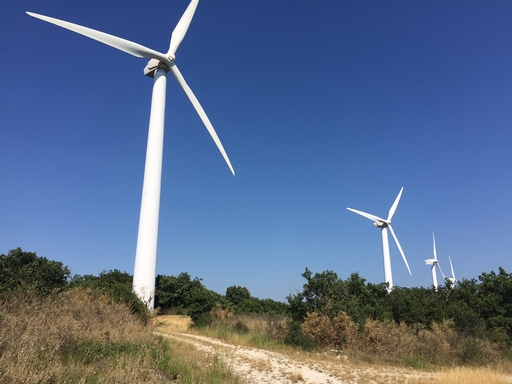

Turbine 12957
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12957 - Date: 2017

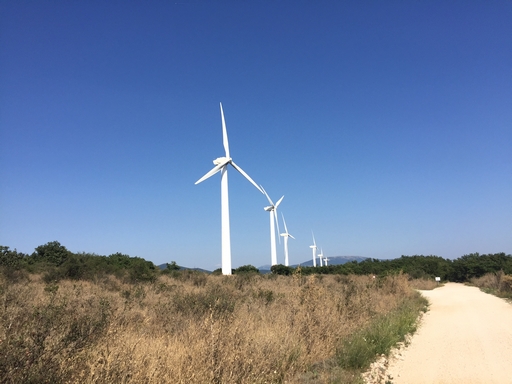

Turbine 12958
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12958 - Date: 2017

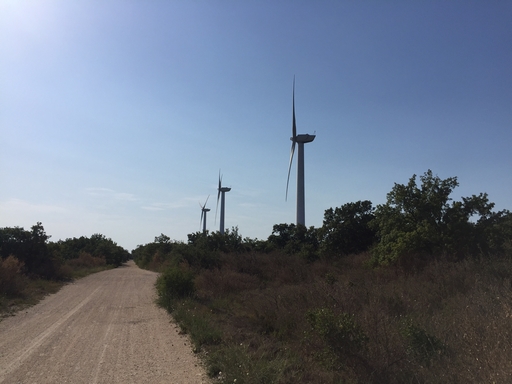

Turbine 12959
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12959 - Date: 2017


Update for this sheet: 16 April 2018
