General data

  • Manufacturer: Enercon (Germany)
  • Model: E92/2350
  • Product page
  • Rated power: 2,350 kW
  • Rotor diameter: 92 m
  • Available model
  • Wind class: IEC IIa (WZ III)
  • Offshore model: no
  • Swept area: 6,648 m²
  • Power density: 2.83 m²/kW
  • Number of blades: 3
  • Power control: Pitch
  • Commissioning: 2012

Rotor

  • Minimum rotor speed: 5 rd/min
  • Maximum rotor speed: 16 rd/min
  • Cut-in wind speed: 2 m/s
  • Rated wind speed: 13 m/s
  • Cut-off wind speed: 25 m/s
  • Manufacturer: Enercon

Gear box

  • Gear box: no
  • Stages: -
  • Gear ratio: -
  • Manufacturer: -

Generator

  • Type: SYNC Wounded
  • Number: 1
  • Maximum speed: 16 rounds/minute
  • Voltage: 690 V
  • Manufacturer: Enercon

Tower

  • Minimum hub height: 78 m
  • Maximum hub height: 138 m
PDF

E92/2350 - Enercon - 2350 kW
Laurent Jobart - Alpha Wind

Power curve



(Air density: 1,225 kg/m3)


Wind farms in the database


Full list (218 wind farms)



Pictures

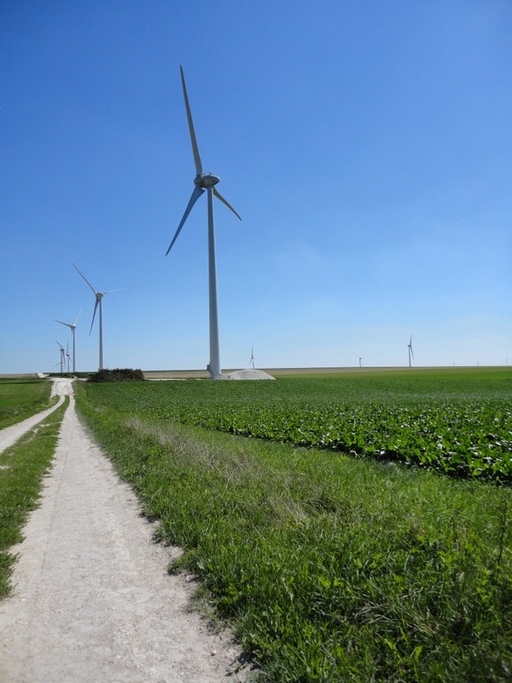

Turbine 9901
Author: Aurélien - License: All right reserved
Picture reference: 9901 - Date: 2010

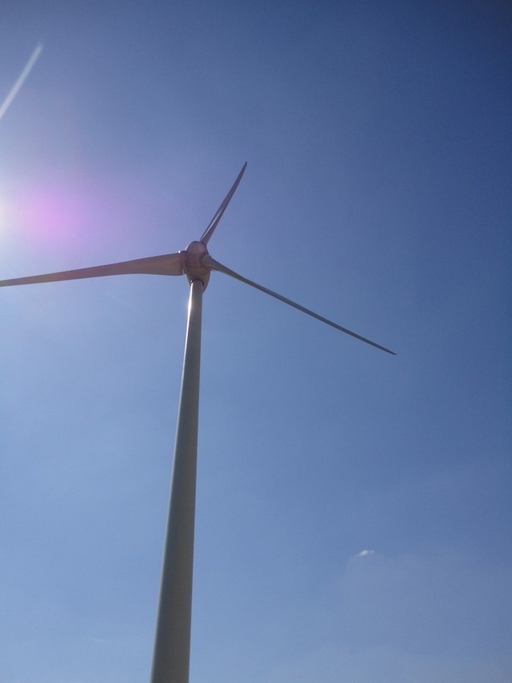

Turbine 9902
Author: Aurélien - License: All right reserved
Picture reference: 9902 - Date: 2010

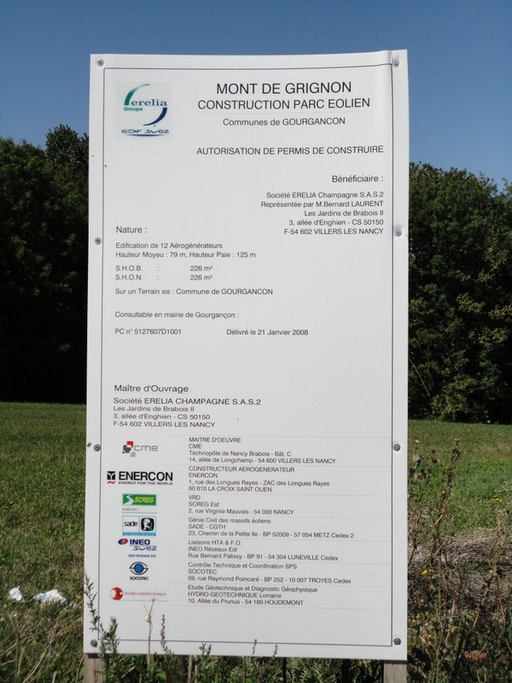

Turbine 9904
Author: Aurélien - License: All right reserved
Picture reference: 9904 - Date: 2010

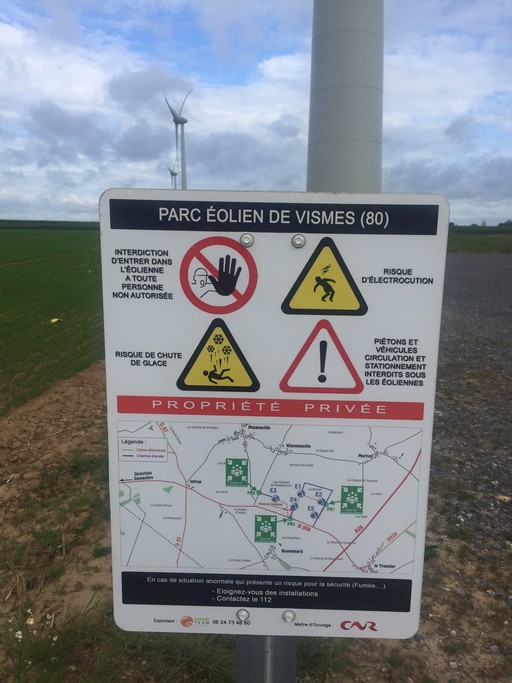

Turbine 12871
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12871 - Date: 2017

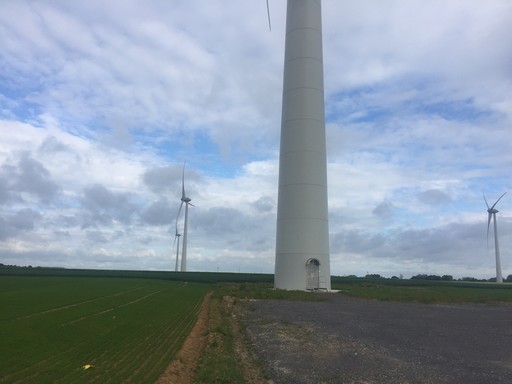

Turbine 12872
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12872 - Date: 2017

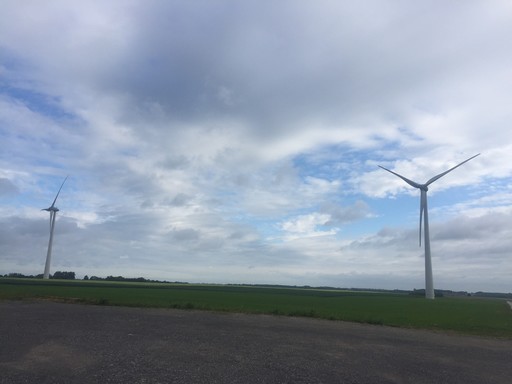

Turbine 12873
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12873 - Date: 2017

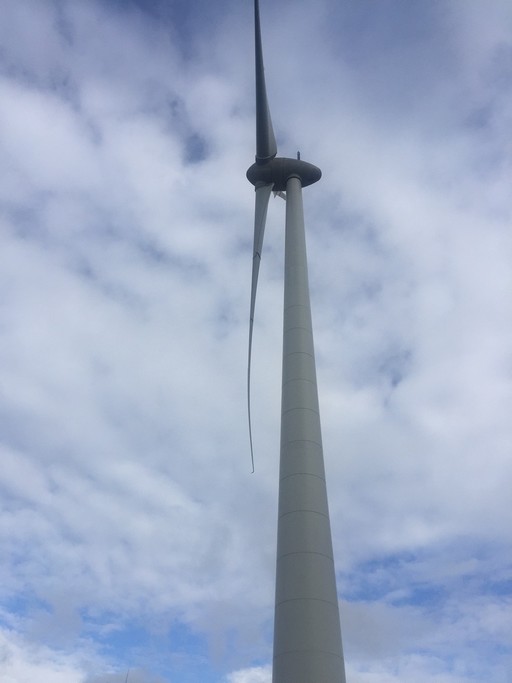

Turbine 12874
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12874 - Date: 2017

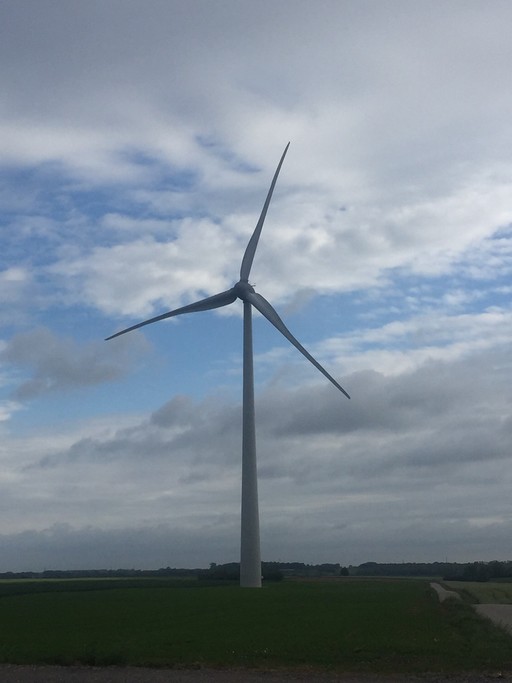

Turbine 12875
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12875 - Date: 2017

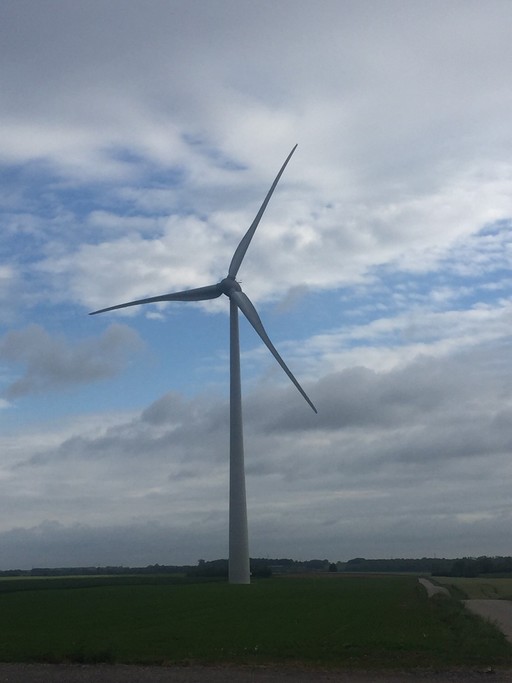

Turbine 12876
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12876 - Date: 2017

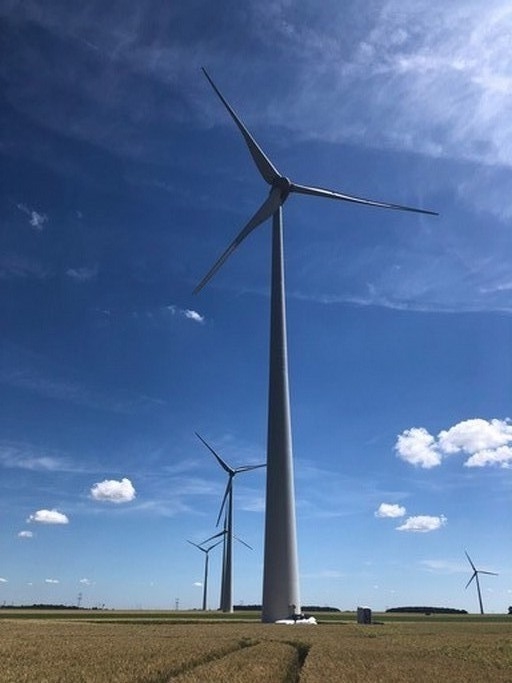

Turbine 13528
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13528 - Date: 2018

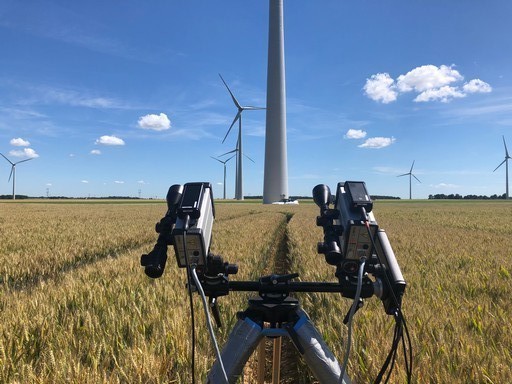

Turbine 13529
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13529 - Date: 2018

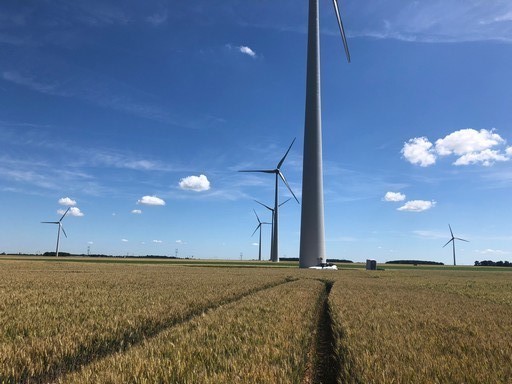

Turbine 13530
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13530 - Date: 2018

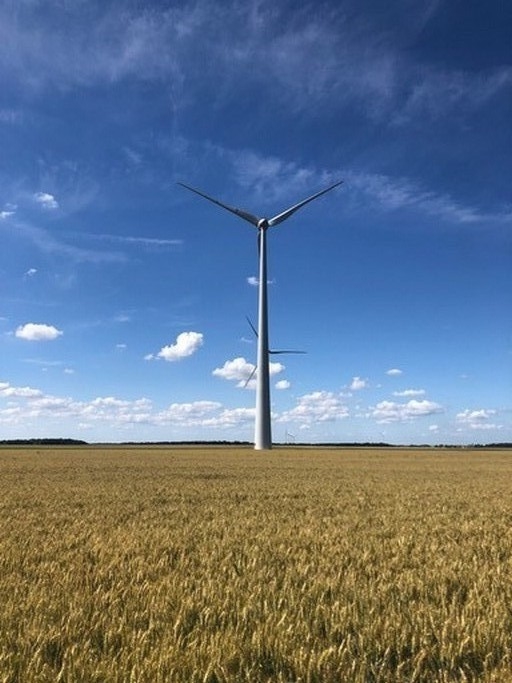

Turbine 13531
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13531 - Date: 2018

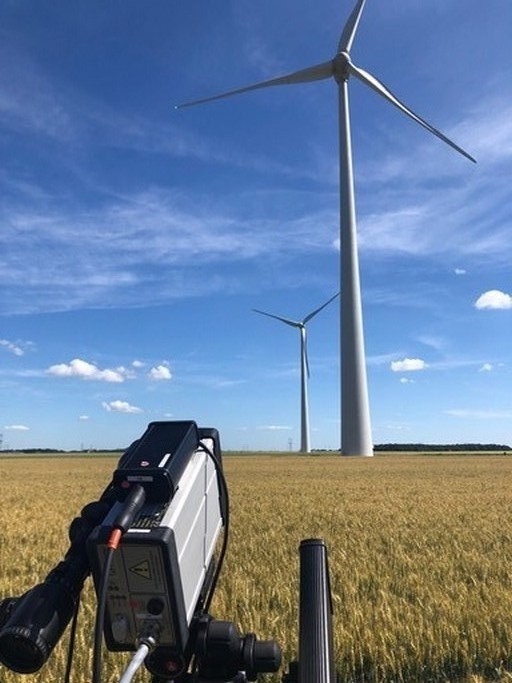

Turbine 13532
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13532 - Date: 2018

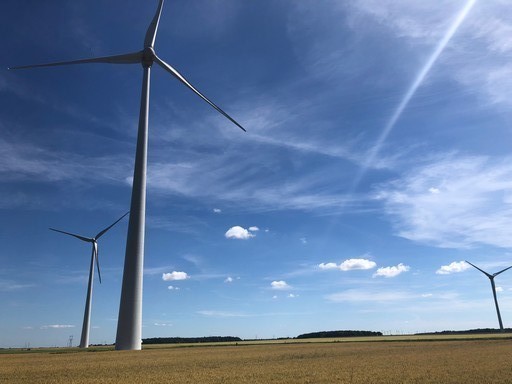

Turbine 13533
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13533 - Date: 2018

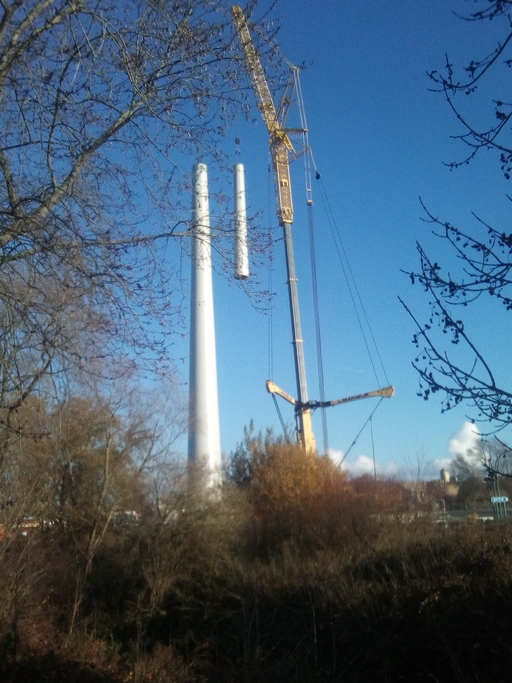

Turbine 13778
Author: Philippe de Troy - License: All right reserved
Picture reference: 13778 - Date: 2019

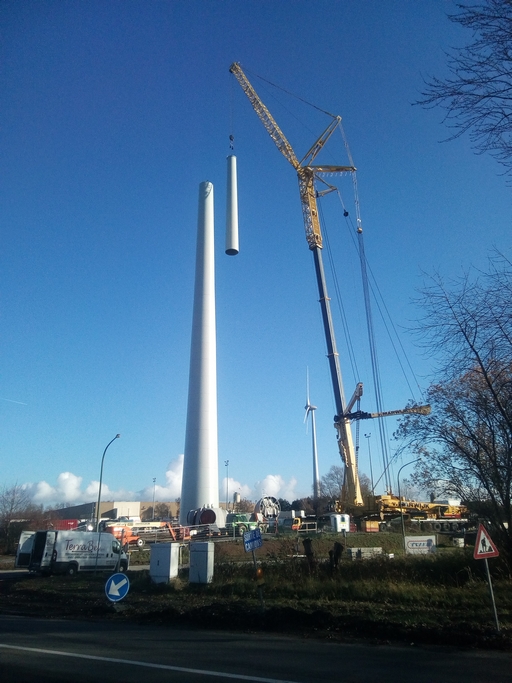

Turbine 13779
Author: Philippe de Troy - License: All right reserved
Picture reference: 13779 - Date: 2019

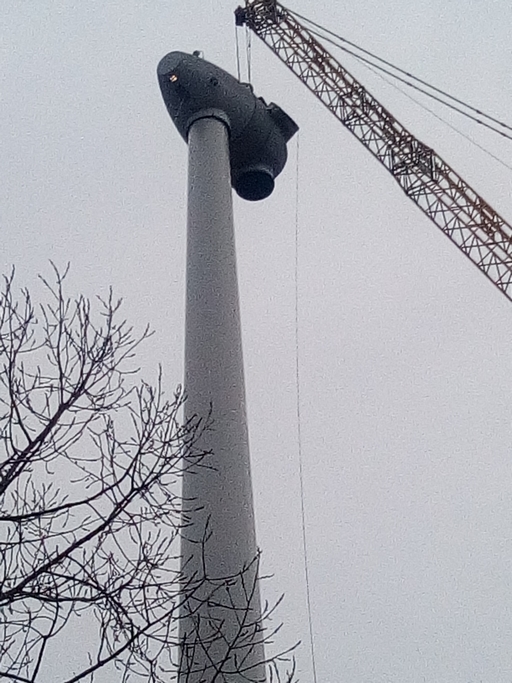

Turbine 13780
Author: Philippe de Troy - License: All right reserved
Picture reference: 13780 - Date: 2019

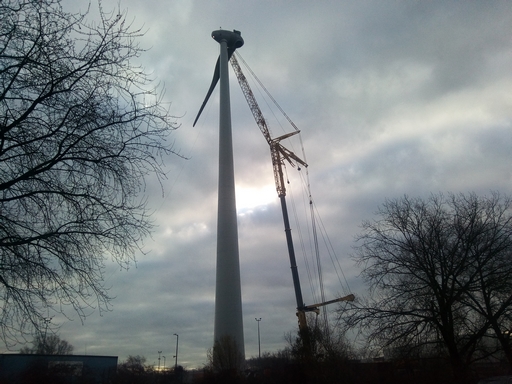

Turbine 13781
Author: Philippe de Troy - License: All right reserved
Picture reference: 13781 - Date: 2019

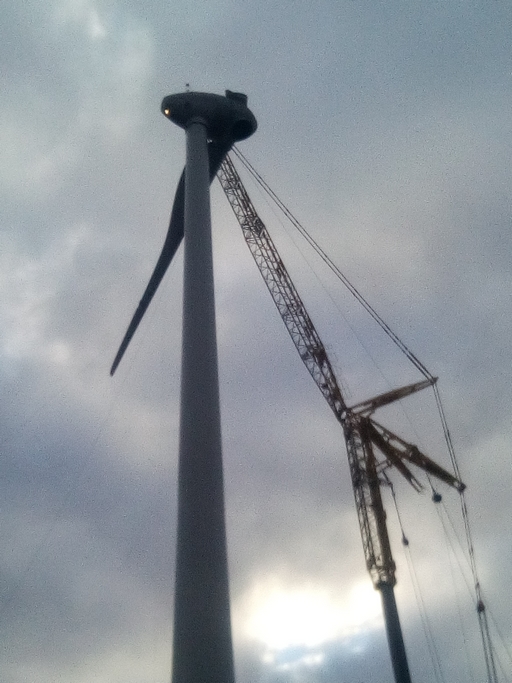

Turbine 13782
Author: Philippe de Troy - License: All right reserved
Picture reference: 13782 - Date: 2019

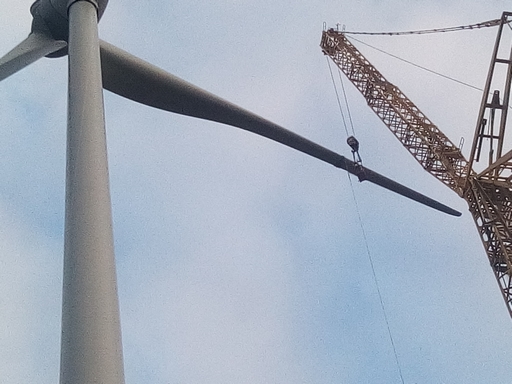

Turbine 13783
Author: Philippe de Troy - License: All right reserved
Picture reference: 13783 - Date: 2019


Update for this sheet: 7 February 2020
