General data

  • Manufacturer: Mapna Group (Iran)
  • Model: Mapna 2.5 MW
  • Product page
  • Rated power: 2,500 kW
  • Rotor diameter: 104 m
  • No more available
  • Wind class: IEC 2a/3
  • Offshore model: no
  • Swept area: 8,495 m²
  • Power density: 3.4 m²/kW
  • Number of blades: 3
  • Power control: Pitch

Weights

  • Nacelle: 96 tons
  • Tower: 170 tons
  • Rotor + hub: 52 tons
  • Total: 318 tons

Rotor

  • Minimum rotor speed: 9,4 rd/min
  • Maximum rotor speed: 17,1 rd/min
  • Cut-in wind speed: 3,5 m/s
  • Rated wind speed: 12 m/s
  • Cut-off wind speed: 25 m/s

Gear box

  • Gear box: yes
  • Stages: 3
  • Gear ratio: 79,6

Generator

  • Type: ASYNC DF
  • Number: 1
  • Maximum speed: 1310 rounds/minute
  • Voltage: 690 V

Tower

  • Hub height: 85 m
PDF

Mapna 2.5 MW - Mapna Group - 2500 kW
Mapna


Wind farms in the database


Pictures

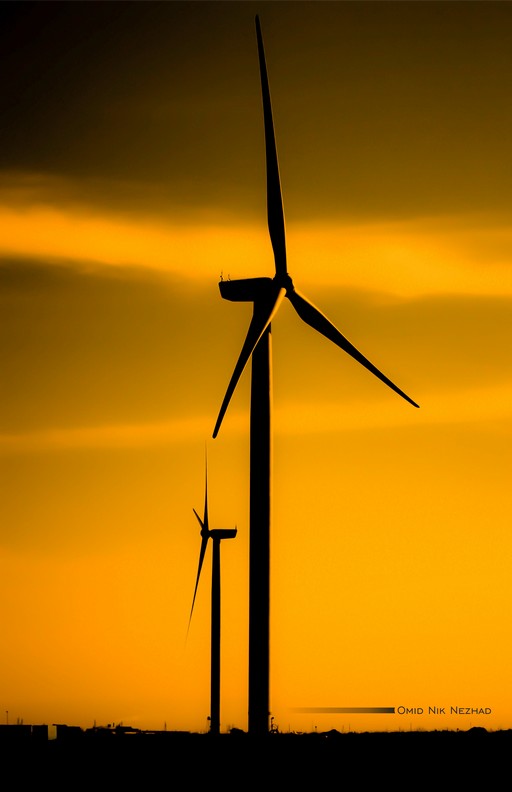

Turbine 12034
Source: Mapna - License: All right reserved
Picture reference: 12034 - Date: 2014

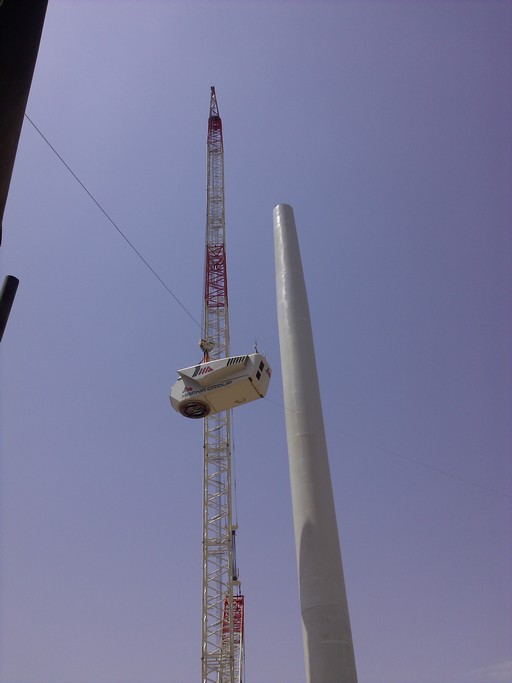

Turbine 12035
Source: Mapna - License: All right reserved
Picture reference: 12035 - Date: 2014

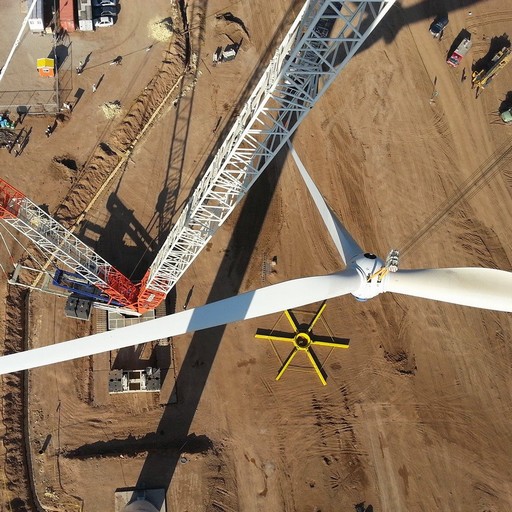

Turbine 12036
Source: Mapna - License: All right reserved
Picture reference: 12036 - Date: 2014
Turbine 12037
Source: Mapna - License: All right reserved
Picture reference: 12037 - Date: 2014

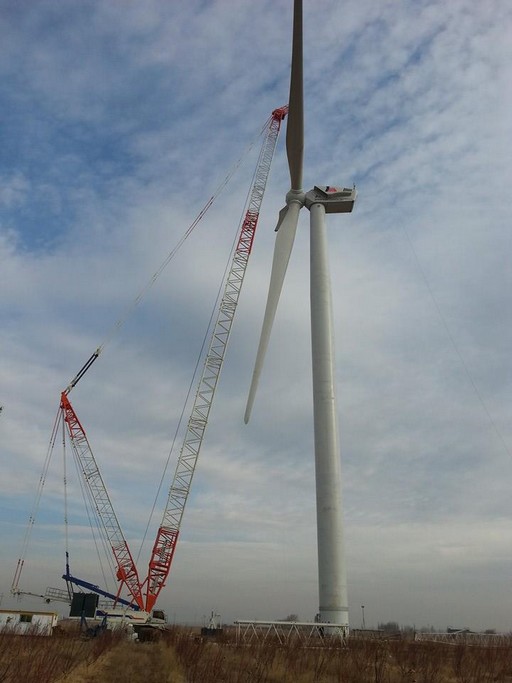

Turbine 12038
Source: Mapna - License: All right reserved
Picture reference: 12038 - Date: 2014
