General data

  • Manufacturer: Siemens (Germany)
  • Model: SWT-2.3-101
  • Product page
  • Rated power: 2,300 kW
  • Rotor diameter: 101 m
  • No more available
  • Wind class: IEC IIb
  • Offshore model: no
  • Swept area: 8,012 m²
  • Power density: 3.49 m²/kW
  • Number of blades: 3
  • Power control: Pitch
  • Commissioning: 2008

Weights

  • Nacelle: 82 tons
  • Tower: 162 tons
  • Rotor + hub: 62 tons
  • Total: 306 tons

Rotor

  • Minimum rotor speed: 6 rd/min
  • Maximum rotor speed: 16 rd/min
  • Cut-in wind speed: 3 m/s
  • Rated wind speed: 12 m/s
  • Cut-off wind speed: 20 m/s
  • Manufacturer: Siemens

Gear box

  • Gear box: yes
  • Stages: 3
  • Gear ratio: 91
  • Manufacturer: Winergy

Generator

  • Type: ASYNC
  • Number: 1
  • Maximum speed: 1600 rounds/minute
  • Voltage: 750 V

Tower

  • Minimum hub height: 80 m
  • Maximum hub height: 100 m
PDF

Power curve




Wind farms in the database


Full list (73 wind farms)



Pictures

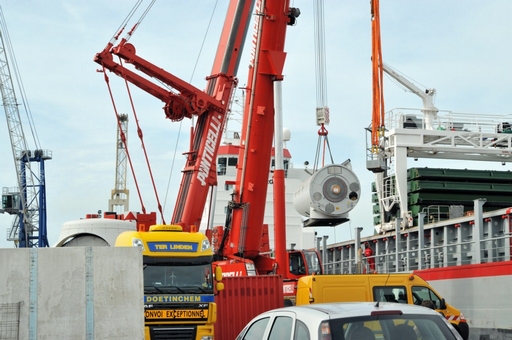

Turbine 9519
Author: Rudy Chrétien - License: All right reserved
Picture reference: 9519 - Date: 2010

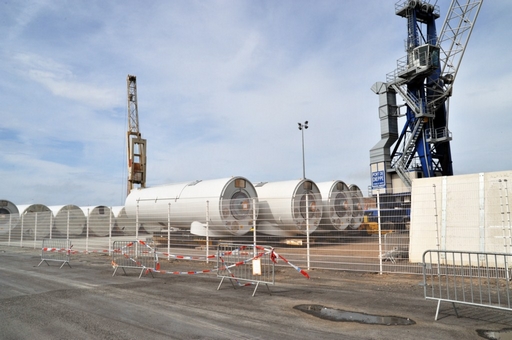

Turbine 9520
Author: Rudy Chrétien - License: All right reserved
Picture reference: 9520 - Date: 2010

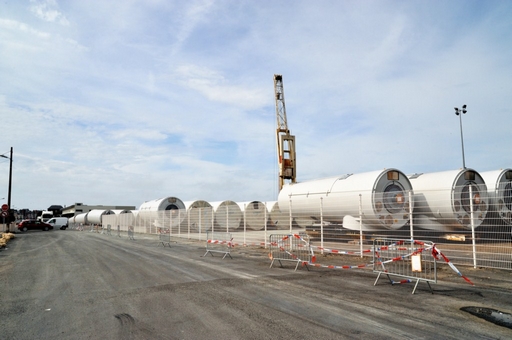

Turbine 9521
Author: Rudy Chrétien - License: All right reserved
Picture reference: 9521 - Date: 2010

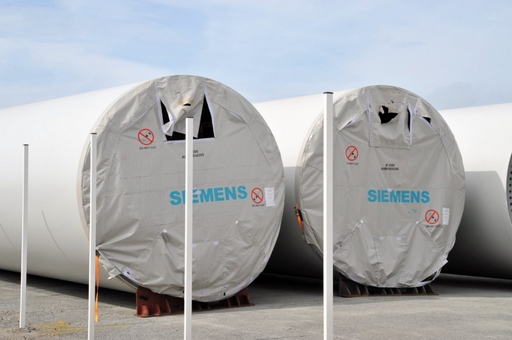

Turbine 9522
Author: Rudy Chrétien - License: All right reserved
Picture reference: 9522 - Date: 2010

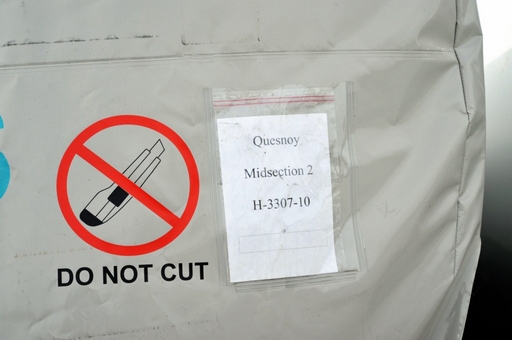

Turbine 9523
Author: Rudy Chrétien - License: All right reserved
Picture reference: 9523 - Date: 2010

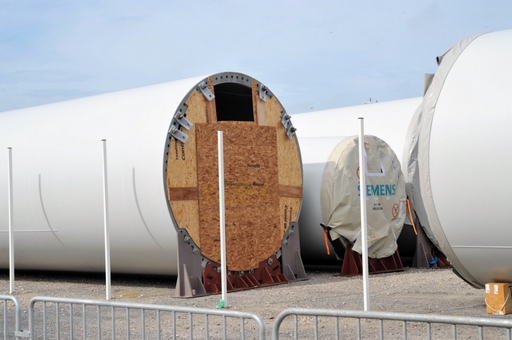

Turbine 9524
Author: Rudy Chrétien - License: All right reserved
Picture reference: 9524 - Date: 2010

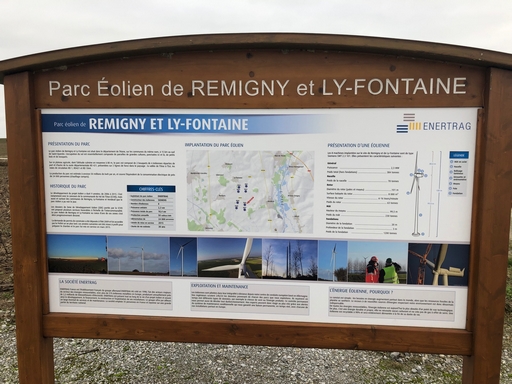

Turbine 13721
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13721 - Date: 2019

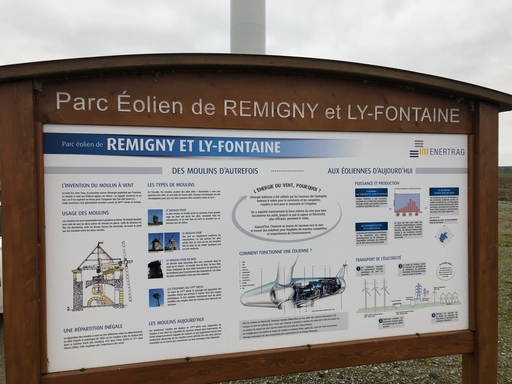

Turbine 13722
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13722 - Date: 2019

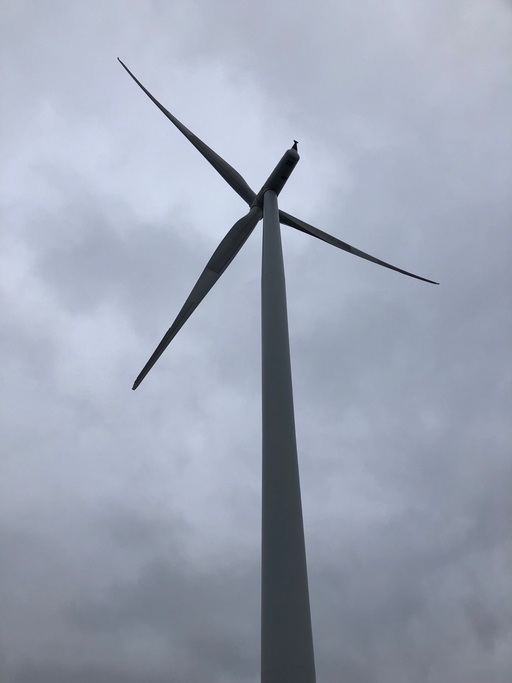

Turbine 13723
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13723 - Date: 2019

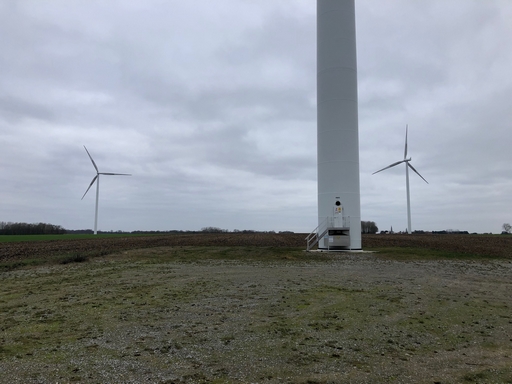

Turbine 13724
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13724 - Date: 2019

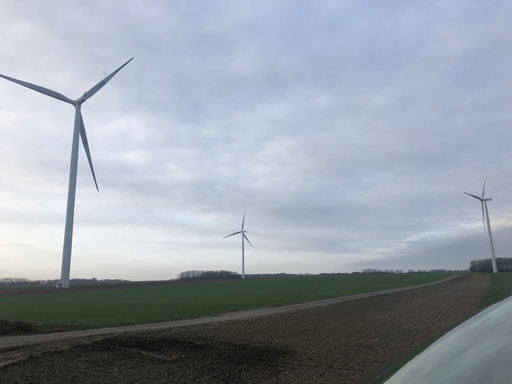

Turbine 13725
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13725 - Date: 2019

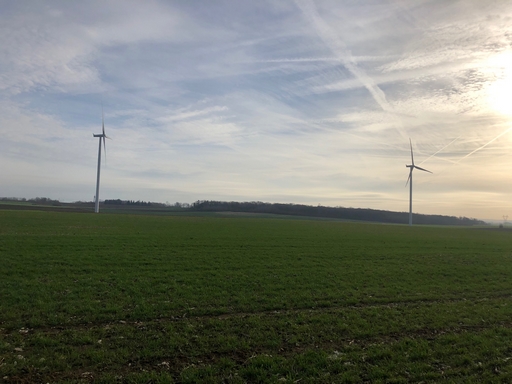

Turbine 13726
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13726 - Date: 2019

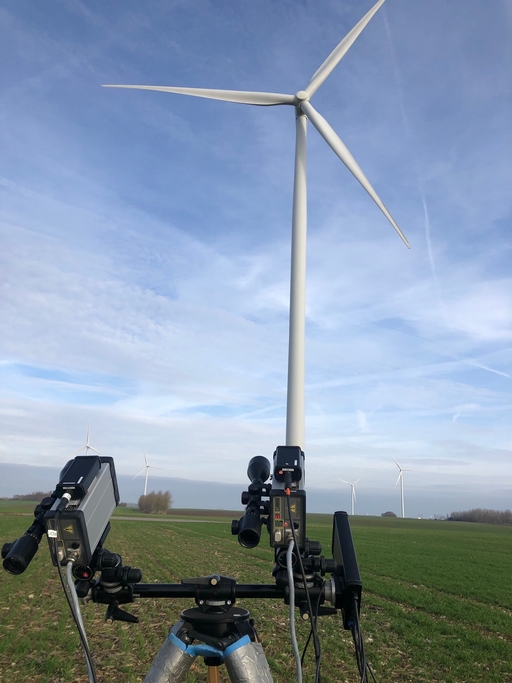

Turbine 13727
