Online access > Manufacturers and turbines > Gamesa > G97/2000



Manufacturers file (219 manufacturers)
Turbines file (1,700 turbines)
Power curves file (780 curves)

General data

  • Manufacturer: Gamesa (Spain)
  • Model: G97/2000
  • Product page
  • Rated power: 2,000 kW
  • Rotor diameter: 97 m
  • No more available
  • Wind class: IEC IIIa
  • Offshore model: no
  • Swept area: 7,390 m²
  • Power density: 3.7 m²/kW
  • Number of blades: 3
  • Power control: Pitch

Weights

  • Nacelle: 26 tons

Rotor

  • Minimum rotor speed: 9,6 rd/min
  • Maximum rotor speed: 17,8 rd/min
  • Cut-in wind speed: 3 m/s
  • Rated wind speed: 14 m/s
  • Cut-off wind speed: 25 m/s
  • Manufacturer: LM Glasfiber, Gamesa

Gear box

  • Gear box: yes
  • Stages: 3
  • Gear ratio: 106,8

Generator

  • Type: ASYNC DF
  • Number: 1
  • Voltage: 690 V

Tower

  • Minimum hub height: 78 m
  • Maximum hub height: 120 m
PDF

Power curve




Wind farms in the database


Full list (111 wind farms)



Pictures

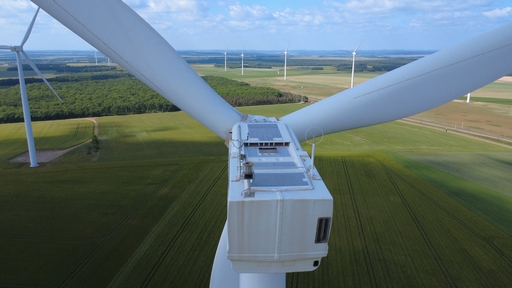

Turbine 10934
Author: Eric Lhuillier - License: All right reserved
Picture reference: 10934 - Date: 2013

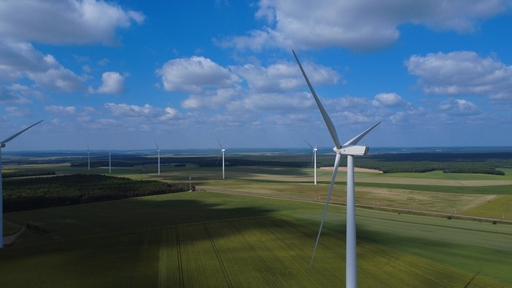

Turbine 10935
Author: Eric Lhuillier - License: All right reserved
Picture reference: 10935 - Date: 2013

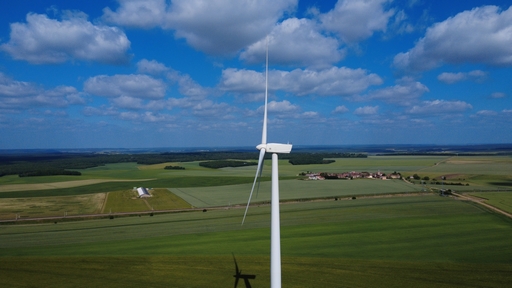

Turbine 10936
Author: Eric Lhuillier - License: All right reserved
Picture reference: 10936 - Date: 2013
Turbine 10937
Author: Eric Lhuillier - License: All right reserved
Picture reference: 10937 - Date: 2013
Turbine 10938
Author: Eric Lhuillier - License: All right reserved
Picture reference: 10938 - Date: 2013
Turbine 10995
Author: Eric Lhuillier - License: All right reserved
Picture reference: 10995 - Date: 2013
Turbine 12815
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12815 - Date: 2017
Turbine 12816
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12816 - Date: 2017
Turbine 12817
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12817 - Date: 2017
Turbine 12818
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12818 - Date: 2017
Turbine 12819
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12819 - Date: 2017
Turbine 12820
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12820 - Date: 2017
Turbine 13492
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13492 - Date: 2018
Turbine 13493
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13493 - Date: 2018
Turbine 13494
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13494 - Date: 2018
Turbine 13495
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13495 - Date: 2018
Turbine 13580
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13580 - Date: 2018
Turbine 13581
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13581 - Date: 2018
Turbine 13582
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13582 - Date: 2018
Turbine 13583
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13583 - Date: 2018
Turbine 13584
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13584 - Date: 2018
Turbine 13585
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13585 - Date: 2018
Turbine 13586
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13586 - Date: 2018
Turbine 13587
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13587 - Date: 2018


Update for this sheet: 4 June 2018
